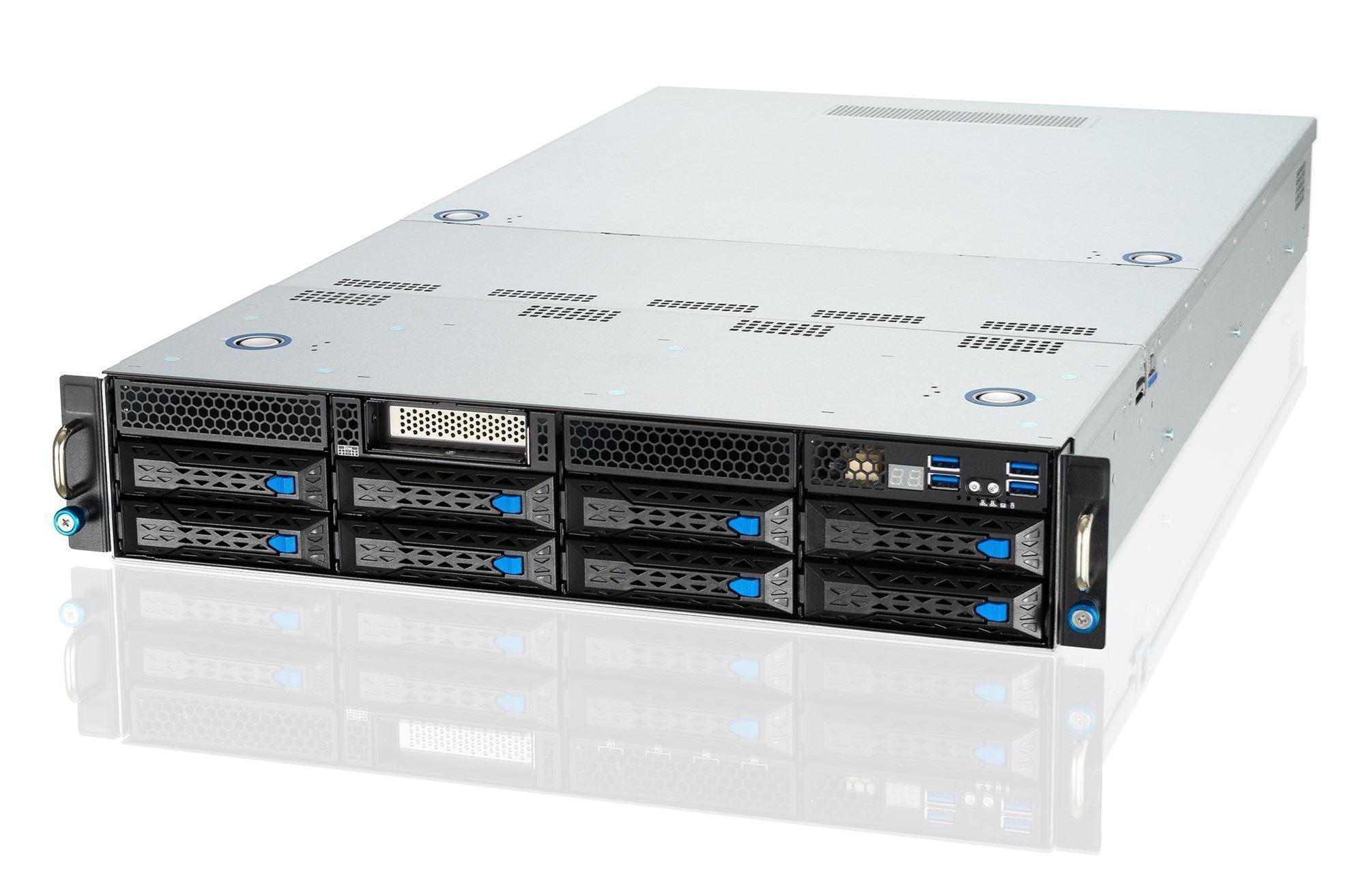

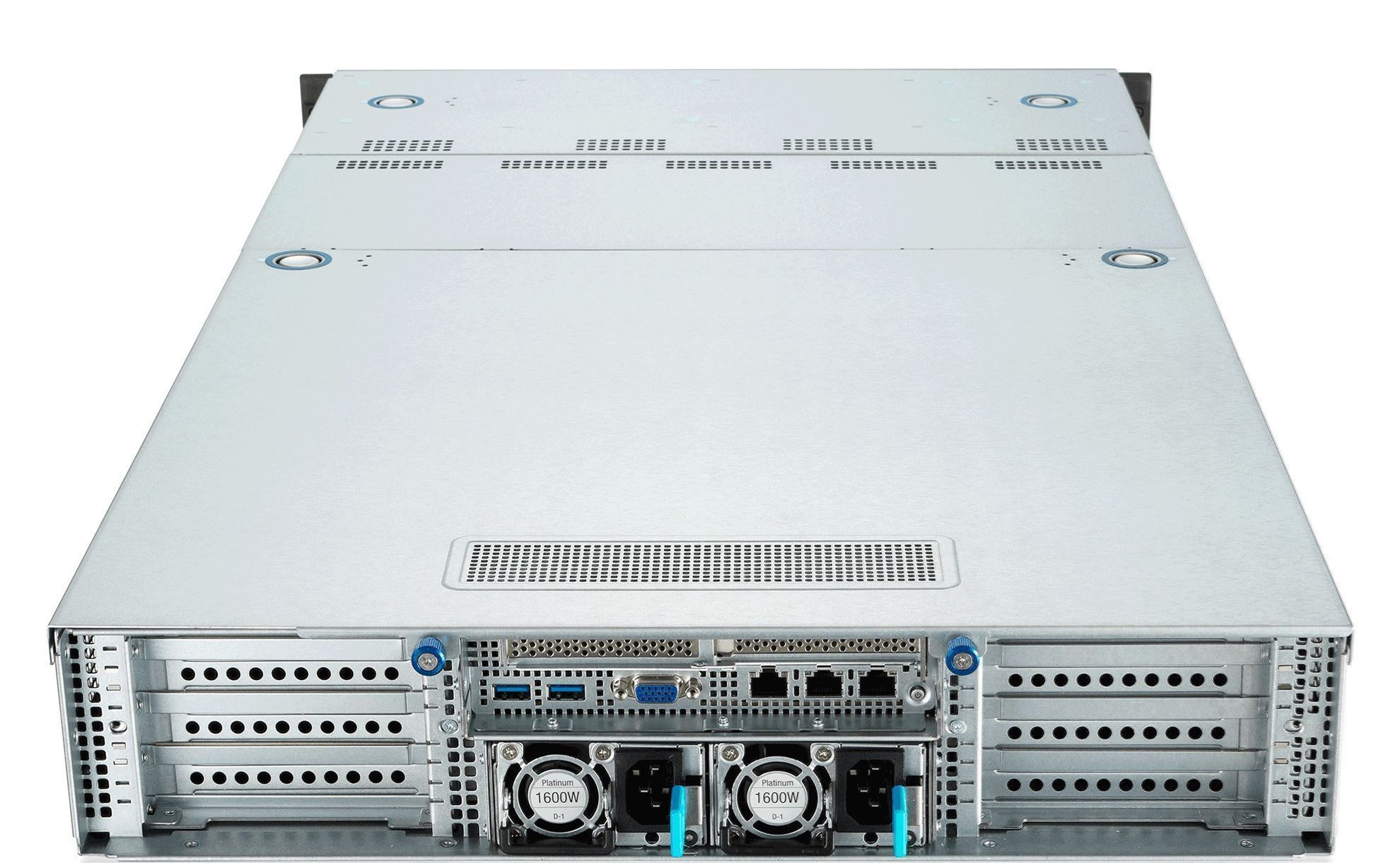

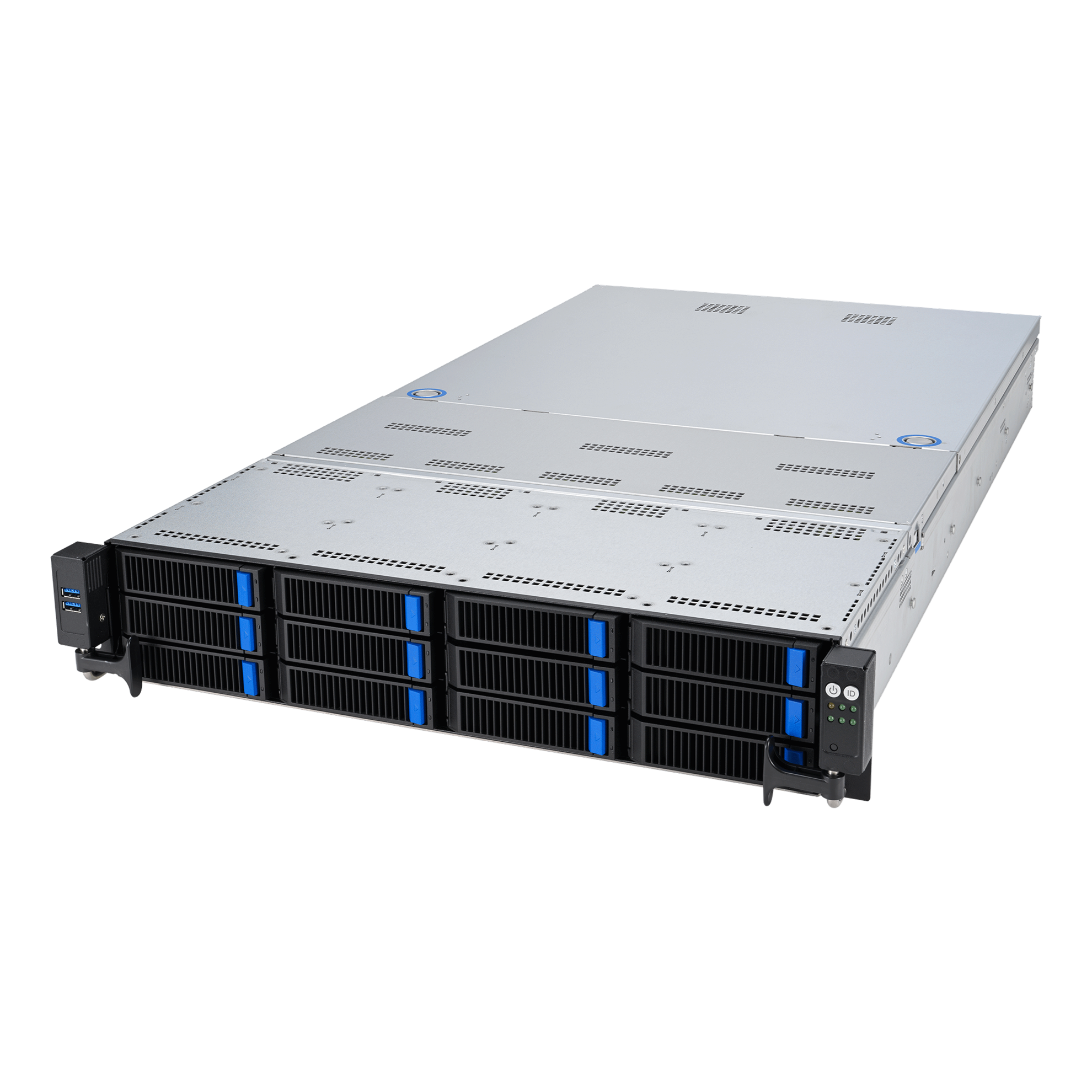

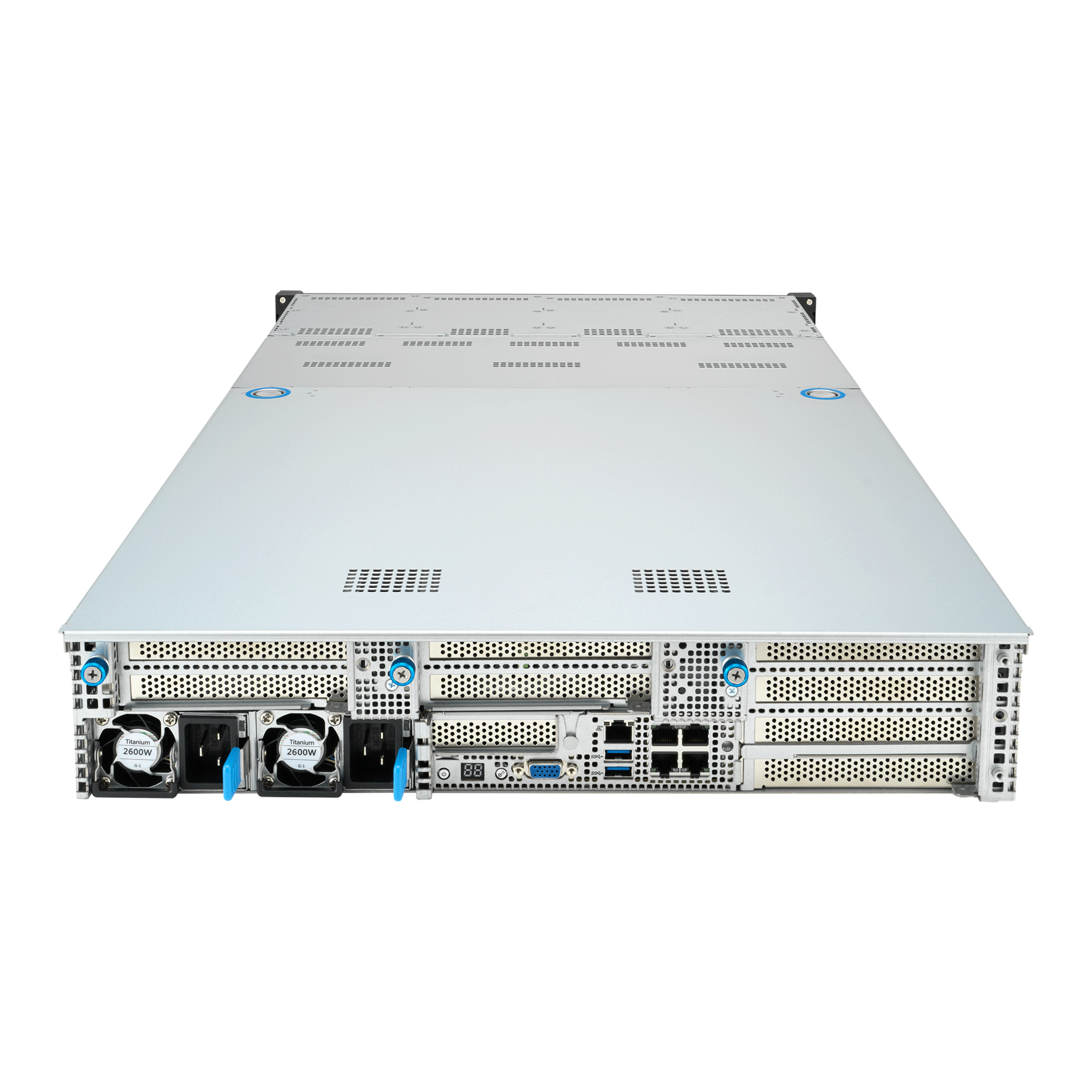

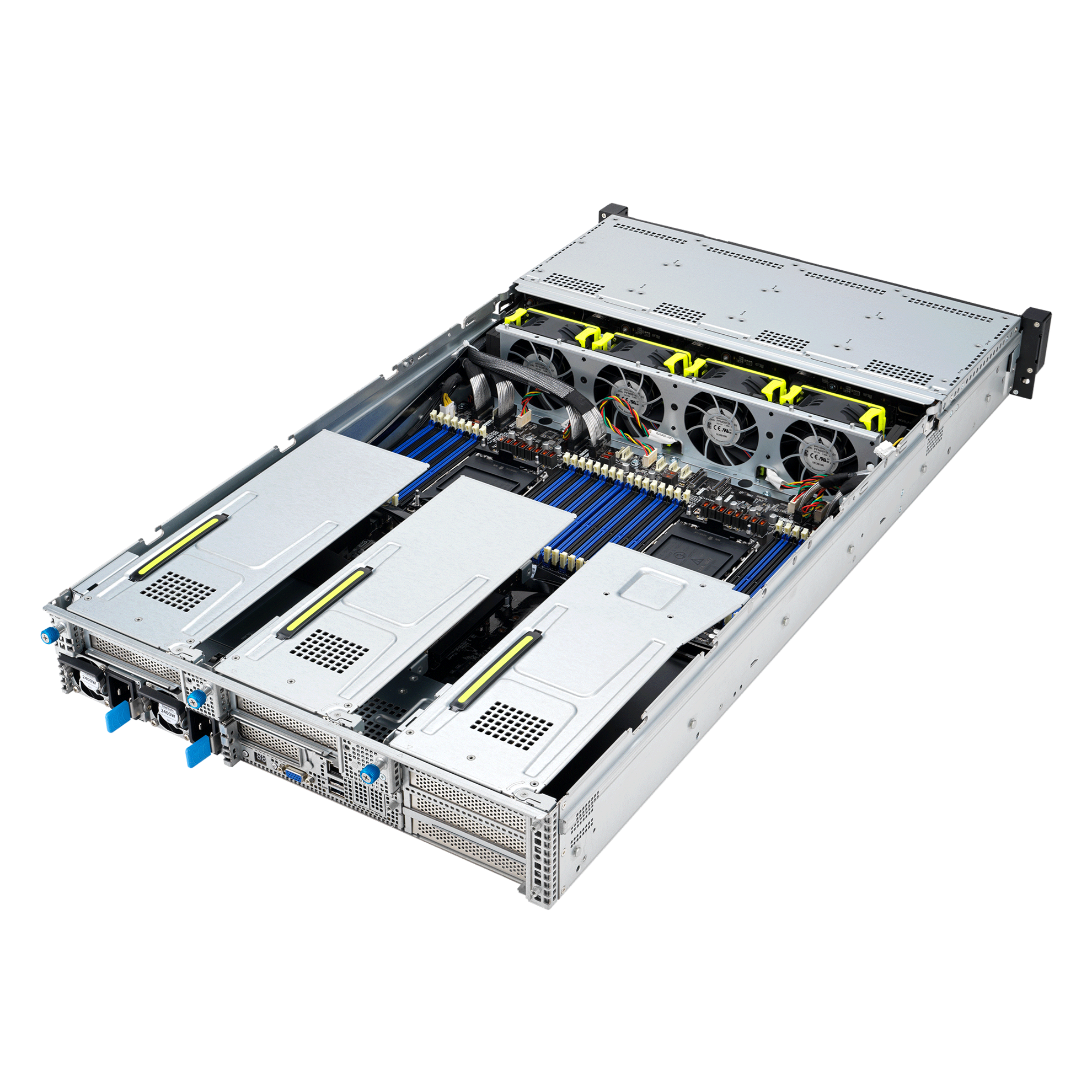

ASUS Servers RS720-E11-RS12U Silver 4410Y

Intel^®Xeon^® Processor Scalable Family

4^th/5^th

Intel^® C741 Chipset

Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

* Refer to www.asus.com/support for more information

Up to 9 slots (with OCP)
• 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)
• 1 x OCP 3.0

Up to 9 slots (without OCP)
• 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)

Configuration #1 (Non-GPU support)
Front Bays:
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA

Rear Bays (Optional):
2 x 2.5" hot-swap drive bays
2 x NVMe/SATA

Configuration #2 (GPU support)
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA

*HBA/RAID card is required to support SAS hard drives

12 x 3.5”/2.5" hot-swap bay
2 x M.2 slot

4

Configuration #1 (Non-GPU support)
1 x Mgmt LAN
4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)

Configuration #2 (GPU support)
1 x Mgmt LAN
2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)

Aspeed AST2600 64MB

2 x USB 3.2 Gen1 ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)

840mm x 447mm x 88mm

2U

26.855kg

Configuration #1 (Non-GPU support)
1+1 Redundant AC:
2600W/1600W 80 PLUS Titanium Power Supply
2000W/1600W 80 PLUS Platinum Power Supply

Configuration #2 (GPU support)
1+1 Redundant AC:
2600W 80 PLUS Titanium Power Supply
2000W 80 PLUS Platinum Power Supply

Configuration #1 (Non-GPU support)
2U Standard Heatsink

Configuration #2 (GPU support)
1U Standard Heatsink
1U EVAC Heatsink

Board/Card/Module
Motherboard: 90SB09M0-M0XBN1
RS12U Backplane: 90SC0IC0-M0XBN2
RS24U Backplane: 90SC0JU0-M1XBN1
2 Ports 10G LAN Module: 90SC0JD0-M0XBN1
4 Ports 1G LAN Module: 90SC0JE0-M0XBN1
Riser Card (for Low Profile Slot): 90SC0H10-M0XBN2
Riser Card (for 5-6 & 7-8 Slot): 90SC0IB0-M0XBN2
RS12U Riser Card (for 1-4 Slot): 90SC0IA0-M0XBN1
Cable Kit
RS12U 12NVMe Cable Kit: 90SKS000-M3QAN0
RS12U 12SATA/SAS Cable Kit: 90SKS000-M3RAN0
RS24U 24NVMe Cable Kit: 90SKS000-M74AN0
9560-16i RAID Card Cable Kit: 90SKS000-M3EAN0
3008/3108 PIKE Card Cable Kit: 90SKS000-M7FAN0
2X4P to 2X6P GPU Power Cable Kit: 90SKS000-M28BN0
Others
CPU Carrier Kit (Each 2pcs of E1A/E1B/E1C): 90SKS000-M4EAN0
Fan (Fan size: 80*80*38mm): 90SK0000-MJDBN0
2U Front Bezel: 90SK0000-MPIAN0
HDD Tray
3.5” Tool-less HDD Tray: 90SKH000-MPRBN0
2.5” Tool-less HDD Tray: 90SKH000-MPPBN0
Heatsink
2U Standard CPU heatsink: 90SKS000-MJTAN0
1U EVAC CPU heatsink: 90SKS000-M4UAN0
Power Supply
1600W Titanium PSU: 90SKP000-M4RAN0
2600W Titanium PSU: 90SKP000-M4PAN0
1600W Platinum PSU: 90SKP000-M28AN0
2000W Platinum PSU: 90SKP000-M4FAN0
Rail Kit/Cable Arm
Rail Kit – Full-Extension for 1.5M Rack: 90SKR000-M07AN0
Rail Kit – Friction: 90SKR000-M0EAN0
Cable Arm: 90SKS000-M23AN0
