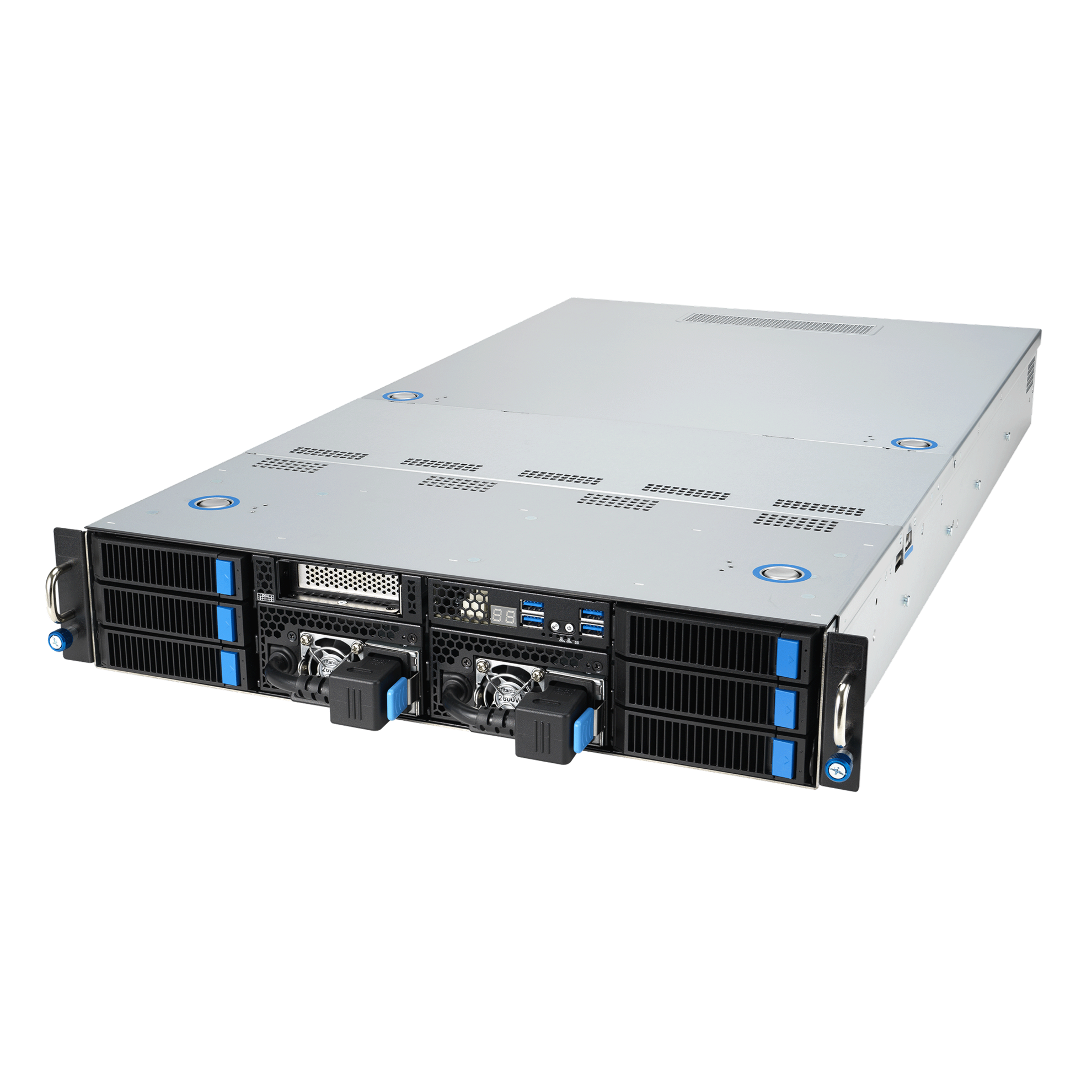

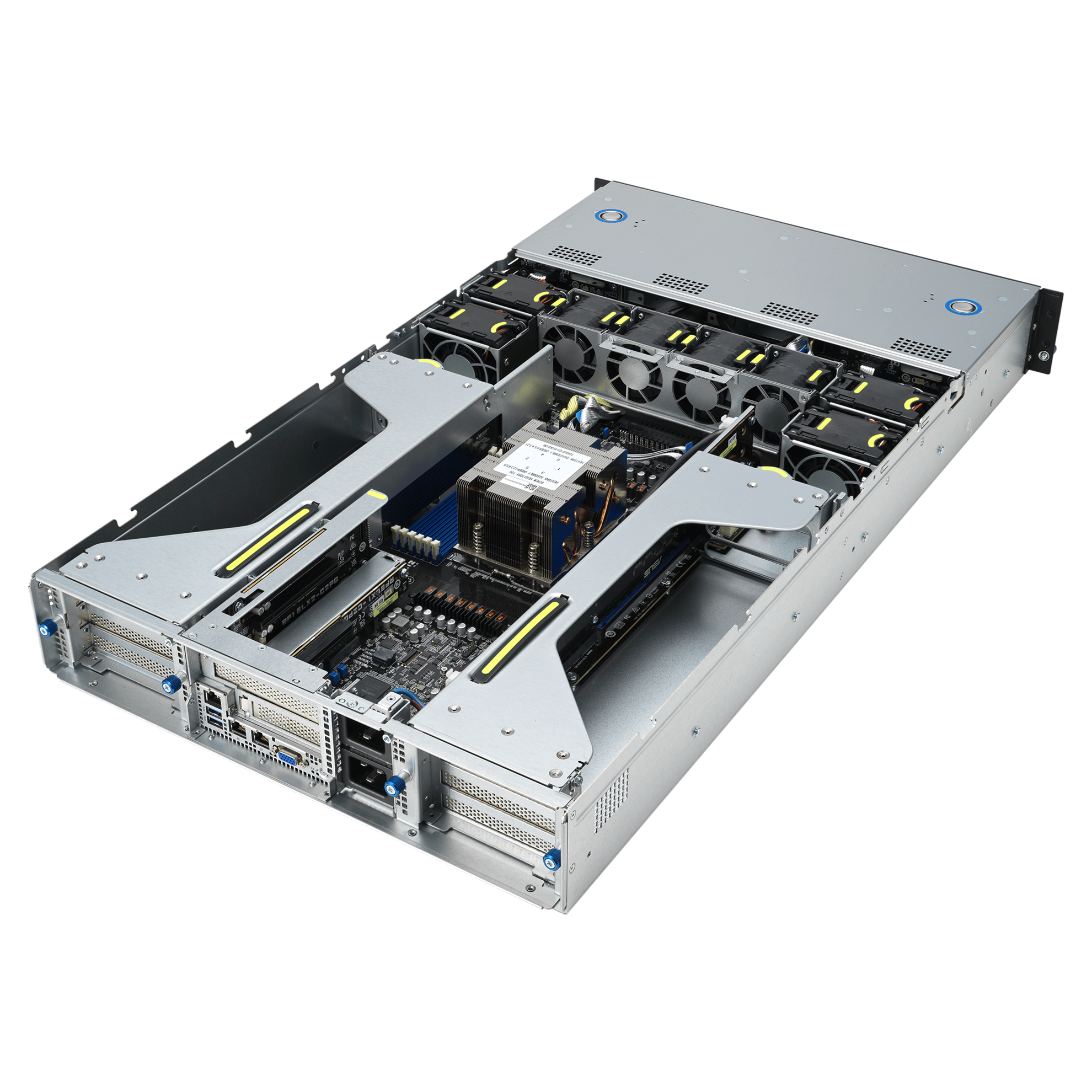

ASUS GPU Servers ESC4000A-E12

1 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 / 9005 series (up to 400W)
4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology

Total Slots : 12 (12-channel)
Capacity : Maximum up to 3TB RDIMM
Memory Type :
DDR5 4800/4400 RDIMM/RDIMM 3DS
Memory Size :
64GB, 32GB, 16GB RDIMM
256GB, 128GB  3DS RDIMM
* Refer to support page for more information

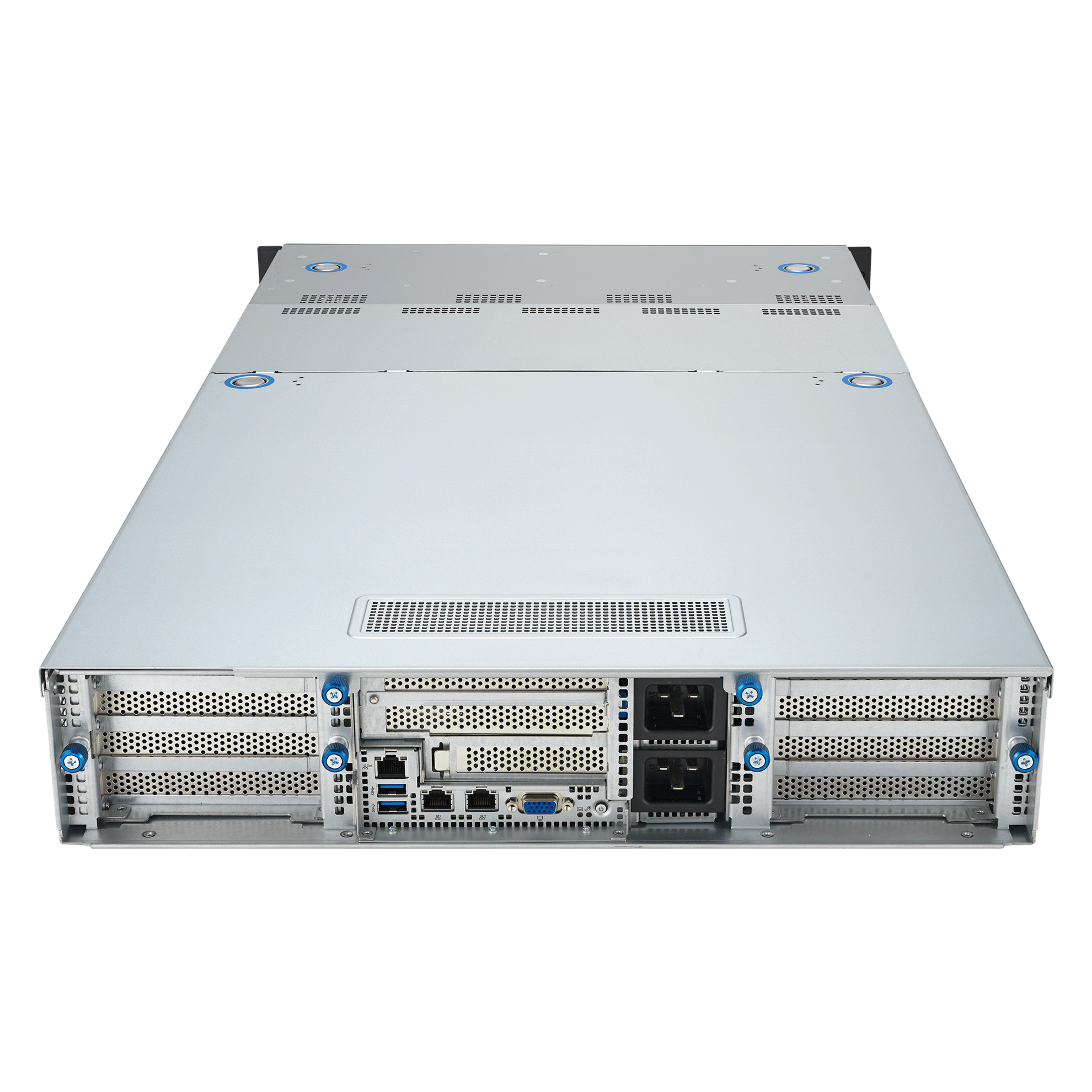

Rear:
-4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards

-1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
-1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module
-1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)

Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1

Storage Controller :
CPU Integrated

Optional kits:
ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card
ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card
Broadcom MegaRAID 9540-8i
Broadcom MegaRAID 9560-16i

2 x GbE LAN ports (Intel I350 Controller)
1 x Management Port

Please find the latest GPU support from https://servers.asus.com/support/gpu​​

1 x Q-code/port-80 LED
4 x USB 3.2 Gen1 ports

2 x USB 3.2 Gen1 ports
2 x Gigabit LAN ports
1 x MAnagement port
1 x VGA port

Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x Q-Code/Port 80 LED
2 x LAN LED

Rear :
1 x Power Button/LED
1 x Location LED
1 x Message LED

Please find the latest OS support from https://servers.asus.com/support/os​

ASUS Control Center
ASUS ASMB11-iKVM (on-board)

BSMI, CE, RCM, FCC(Class A)

800mm x 439.5mm x 88.9mm (2U)
31.50" x 17.30" x 3.50"

Net Weight: 24 Kg
Gross Weight: 34.8 Kg

1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply

*2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W

Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

90SK0000-MPNBN0    ESC4000 SERIES GPU POWER CABLE KIT/12+4P TO 6P*2/L=220MM (4IN1)//GPU POWER CABLE FOR H100/H100 NVL/ ADA series /L40/L40S
90SKS000-M2LAN0   6P TO 6+2P GPU CABLE KIT; 220MM
90SKS000-M78AN0   6P TO 6+2P GPU CABLE KIT; 350MM
90SKS000-MJXAN0   9540 RAID CABLE KIT/SUPPORT NVME/SATA/SAS
90SKS000-M2JAN0   9560 RAID CABLE KIT/SUPPORT NVME/SATA/SAS
90SKS000-M7DAN0   PIKE CARD CABLE KIT
90SKS000-M4LAN0   AMD SP5 2U STD HS
90SKS000-M23AN0   R2P-B CABLE ARM
90SKS000-M41AN0   6056 FAN
90SK0000-MWEAN0   8038 FAN/Delta
90SKH000-MPRBN0   3.5" HDD TRAY TOOLLESS V3
90SKS000-M4MAN0   ESC4000-E11/INTEL EGS 2U STD
90SKP000-M4CAN0   2600W TITANIUM RPSU-R//GOSPOWER/G1302-2600WRA (185MM)
90SKR000-M07AN0   1.5U FULL EXTENSION SLIDE RAIL KIT
90SKS000-M4CAN0   ESC4000A-E12//OCP RISER MODULE
90SKS000-M4DAN0   ESC4000A-E12//M.2 RISER MODULE
