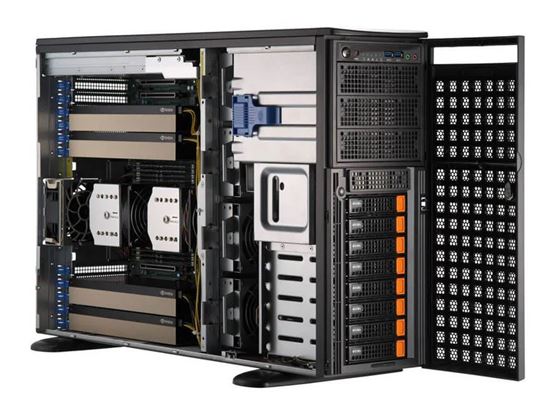

GPU SuperServer SYS-741GE-TNRT

5th/4th Gen Intel® Xeon® Scalable processor support
16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
Up to 4x double width, full length GPUs
4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
2x M.2 NVMe for boot drive only
Up to 8x NVMe drives (8 NVMe drives supported by default)
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2000W (1+1) Redundant Power Supplies, Titanium Level

Nhà sản xuất: Supermicro

Gọi để biết giá

Số lượng:

Product SKUs
SuperServer SYS-741GE-TNRT

Motherboard
Super X13DEG-QT

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width GPUs
Supported GPU	NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 6000 Ada Generation, RTX A4000, RTX A5500, RTX A6000 AMD PCIe: Instinct™ MI210 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
Certification

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 View AOC Options

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	18.32" (465.4 mm)
Width	6.96" (177 mm)
Depth	26.71" (678.5 mm)
Package	12.59" (H) x 26.85" (W) x 37.95" (D)
Weight	Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg)
Available Color	Black Front & Silver Body

Front Panel
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED

Expansion Slots
PCI-Express (PCIe) Configuration	Default 7 PCIe 5.0 x16 FHFL slots View AOC Options
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays View NVMe Options View Drive Options
M.2	2 M.2 NVMe slots (M-key) View M.2 Options

System Cooling
Fans	Up to 4 heavy duty fans with optimal fan speed control

Power Supply

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 166.7A / Min: 0A (200Vac-240Vac) Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
