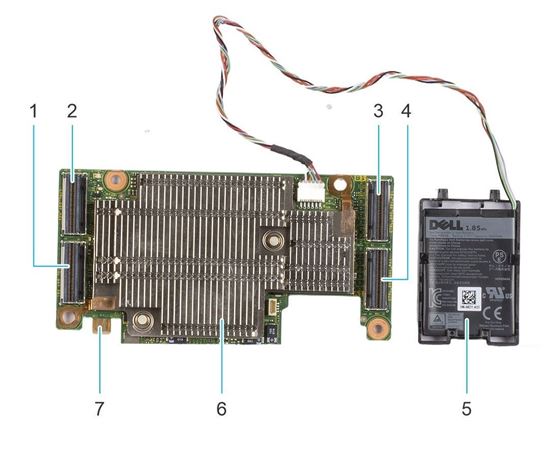

Hình ảnh PERC H965i Controller Front Load, 22.5 Gbps SAS/NVMe, 8GB NV Cache

PERC H965i Controller Front Load, 22.5 Gbps SAS/NVMe, 8GB NV Cache

PERC H965i Controller Front Load, 22.5 Gbps SAS/NVMe, 8GB NV Cache

Là người đầu tiên đánh giá sản phẩm này
Nhà sản xuất: Dell
Gọi để biết giá

Chia sẻ sản phẩm:

Technical specifications of PERC12 and PERC13 cards

Describes the technical specifications of PERC13 and PERC12 cards.

The following table lists the specifications of PERC12 and PERC13 cards.

Table 1. Technical specifications of PERC12 and PERC13 cards
Feature PERC H965i Adapter PERC H965i Front PERC H965i MX PERC H965e Adapter PERC H975i Front
RAID levels 0, 1, 5, 6, 10, 50, and 60 0, 1, 5, 6, 10, 50, and 60 0, 1, 5, 6, 10, 50, and 60 0, 1, 5, 6, 10, 50, and 60 0, 1, 5, 6, 10, 50, and 60
Non–RAID Yes Yes Yes Yes Yes
Host bus type 16-lane, PCIe Gen4 16-lane, PCIe Gen4 16-lane, PCIe Gen4 16-lane, PCIe Gen4 16-lane, PCIe Gen5
Side-band Management I2C, PCIe VDM I2C, PCIe VDM I2C, PCIe VDM I2C, PCIe VDM I2C, PCIe VDM
Enclosures per port Not applicable Not applicable Not applicable 4 Not applicable
Processor Broadcom RAID-on-chip, SAS4116W chipset Broadcom RAID-on-chip, SAS5132W chipset
Energy Pack Power Backup unit Yes-Battery Yes-Battery Yes-Battery Yes-Battery Yes-Supercapacitor
Local Key Management security Yes Yes Yes Yes Yes
Secure enterprise key manager security Yes Yes Yes Yes Yes
Controller queue depth 8,192 8,192 8,192 8,192 8,192
Nonvolatile cache Yes Yes Yes Yes Yes
Cache memory 8 GB DDR4 3200 MT/s cache Integrated RAID cache
Cache function Write-back, read-ahead, write-through, always write-back, no read-ahead Write-back, write-through, always write-back, no read-ahead
Max number of complex VDs 64 64 64 64 16
Max number of simple VDs 240 240 240 240 64
Max number of disk groups 64 64 64 64 32
Max number of VDs per disk group 16 16 16 16 8
Max number of hot spare devices 64 64 64 64 8
Hot-swap devices supported Yes Yes Yes Yes Yes
Auto-Configure behavior (Primary and Execute once) Yes Yes Yes Yes Yes
Hardware XOR engine Yes Yes Yes Yes Yes
Online capacity expansion Yes Yes Yes Yes Yes
Dedicated and global hot spare Yes Yes Yes Yes Yes
Supported Drive Types 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe 22.5 Gbps SAS, 12 Gbps SAS Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
VD strip element size Both 64 KB and 256 KB allowed on a hard drive. Only 64 KB allowed on an SSD. 64 KB
NVMe PCIe support Gen 4 Gen 4 Gen 4 Gen 4 Gen 5
Configuration maximum SAS/SATA hard drives support
  • Without SAS Expander: 16 drives per controller
  • With SAS Expander: Limited by platform offerings
 Limited by platform: 8 drives per controller 240 SAS drives Not supported
Configuration maximum NVMe hard drives support
  • Without PCIe Switch Expander: 8 drives per controller
  • With PCIe Switch Expander: Limited by platform offerings
 Limited by platform: 8 drives per controller Not supported 16 drives per controller
Controller maximum hard drives supported
  • 240 SAS/SATA
  • 24 NVMe
 240 SAS 32 NVMe
Drive sector size supported 512B, 512e, and 4Kn 512B, 512e, and 4Kn 512B, 512e, and 4Kn 512B, 512e, and 4Kn 512B, 512e, and 4Kn
Storage Boot Support UEFI-only UEFI-only UEFI-only No boot support UEFI-only

NOTE:Complex VDs are RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, and multidrive RAID 0. Simple VDs are single drive RAID 0.


NOTE:

  • If you are using the following VD features, then ensure that it has the following minimum number of configurable PDs:
    • Maximum 240 simple VDs, then 15 configurable PDs.
    • Maximum 64 complex VDs, then eight configurable PDs.
    • Maximum 64 disk groups, then 64 configurable PDs.
