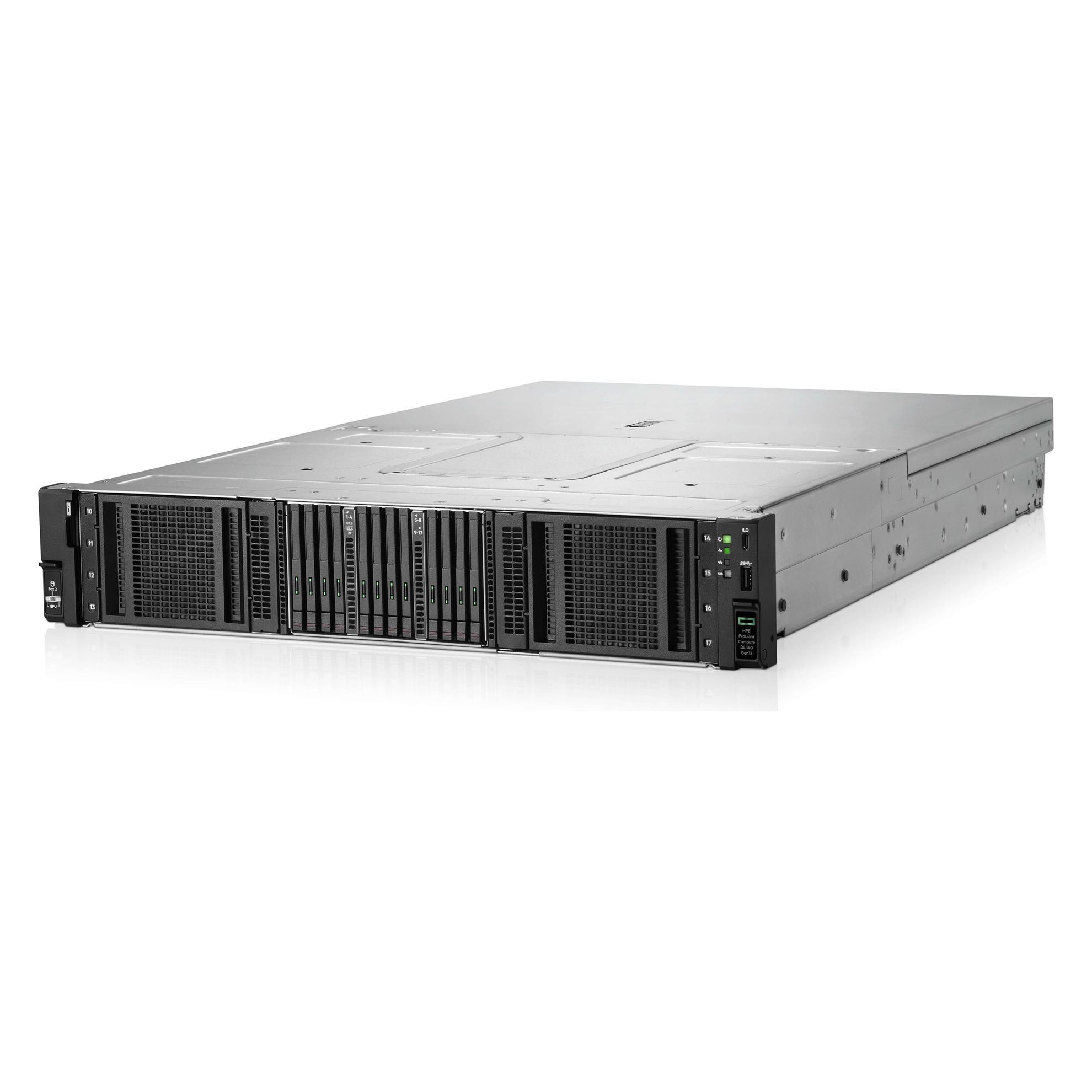

Hình ảnh HPE ProLiant Compute DL340 G12 8SFF 6505P
Hình ảnh HPE ProLiant Compute DL340 G12 8SFF 6505P Hình ảnh HPE ProLiant Compute DL340 G12 8SFF 6505P Hình ảnh HPE ProLiant Compute DL340 G12 8SFF 6505P

HPE ProLiant Compute DL340 G12 8SFF 6505P

    • Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE
    • 2 x HPE 32GB (1x 32GB) Dual Rank x8 DDR5-6400 Registered Smart Memory Kit
    • HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device
    • HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
    • HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
    • Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
    • Management: HPE iLO 7
    • PCIe Slots: Up to 8 PCIe Gen5 slots (up to 6 x16 & up to 2 x8)
    • Security: Trusted Platform Module (TPM) 2.0
    • HPE ProLiant Compute DL3XX Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit
    • Storage: 8 x SAS/ SATA/ EDSFF E3.S Gen5 NVMe hot plug
    • 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    • Form Factor: 2U Rack, HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit
    • Warranty: 3 Years
Là người đầu tiên đánh giá sản phẩm này
Nhà sản xuất: HPE
216.500.000 ₫

Chia sẻ sản phẩm:

The DL340 Gen12 is a 2U 1P server that offers 3 CTO chassis that support SFF, LFF, and GPU configurations.

The 3-box modular front design enhances the configuration flexibility. Due to the configuration flexibility and energy efficiency (reduced power consumption due to better thermals within a 2U chassis), the DL340 Gen12 server is ideal for customers that have a requirement for Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Software as a Service (SaaS) workloads.



Overview

HPE ProLiant Compute DL340 Gen12


The HPE ProLiant Compute DL340 Gen12 is powered by Intel® Xeon® 6 processors with up to 144 cores, increased memory capability (up to 4TB), and high-speed PCIe Gen5. The DL340 Gen12 SP server is a great 2U single socket performance solution driving better datacenter efficiency.

IMAGE 1
IMAGE 2
IMAGE 3
IMAGE 4
IMAGE 5

What’s New

  • – All-New DL340 Gen12 server.
  • – Intel® Xeon® 6 Processors.
  • Single Socket / RICH I/O Processor support (i.e., 136 PCIe lanes).
  • – Data Center – Modular Hardware System (DC-MHS) design.
  • – Modular – Common Redundant Power Supply (M-CRPS) design.
  • – OCP 3.0 (Front and Rear).
  • – NS204i-u front install option based on configuration.
  • – DDR5 6400 MT/s memory.


Platform Information


Form Factor

  • – 2U rack.

Chassis Types

  • – 8 SFF (P71452-B21) with optional:
  • Front OCP Cage Kit.
  • Optical Disk Drive.
  • Front / Rear OS Boot Device support.
  • EDSFF Front Cage supporting up to 36EDSFF drives.
  • – 12 LFF (P75727-B21) with optional:
  • Optical Disk Drive.
  • – Front GPU (P75728-B21) with optional:
  • Front OCP Cage Kit.
  • Front / Rear OS Boot Device support.
  • 8SFF Front Cage Kit.
  • 12EDSFF Front Cage Kit.

System Fans (6 fans required)

Choice of Standard or Performance Fan Kit:

  • – HPE ProLiant DL3X5 Gen11 2U Standard Fan Kit (P58464-B21), Kit includes (1) fan, (6) required.
  • – HPE ProLiant DL3X5 Gen11 2U Performance Fan Kit (P58465-B21), Kit includes (1) fan, (6) required.

Notes:

– The High-Performance fan kit is required for GPU CTO server.

– The High-Performance fan kit is required for NEBS configurations.

– Standard & performance fans cannot be mixed.



Standard Features

Processors

[IMAGE6]

For more information regarding Intel® Xeon® 6 processors, please see the following http://www.intel.com/xeon.

The DL340 Gen12 platform supports Intel® Xeon® 6 Efficient Core (E-Core) and Performance-Core (P-Core) processors. The below processors are supported on the DL340 Gen12 platform. Select one of the below processors.

Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors

Intel® Xeon® Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s)

SGX Enclave Size (GB)

Die

6710E

2.4

64

96

205

4

5600

512

HDCC

6731E

2.2

96

96

250

0

5600

512

HDCC

6740E

2.4

96

96

250

4

6400

512

HDCC

6746E

2

112

96

250

4

5600

512

HDCC

6756E

1.8

128

96

225

4

6400

512

HDCC

6766E

1.9

144

108

250

4

6400

512

HDCC


Intel® Xeon 6® Efficient-Core (E-Core) Performance Processor

Intel® Xeon® Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s)

SGX Enclave Size (GB)

Die

6780E

2.2

144

108

330

4

6400

512

HDCC


Intel® Xeon 6® Performance-Core (P-Core) Processors

Intel® Xeon® Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s) *

SGX Enclave Size (GB)

Die**

6503P

2.8

8

48

135

3

6400

512

LCC

6507P

3.5

8

48

150

3

6400

512

LCC

6517P

3.2

16

72

190

3

6400

512

LCC

6725P

3.7

16

192

235

4

6400

512

HCC

6527P

3.0

24

144

255

4

6400

512

HCC

6730P

2.5

32

288

250

4

6400

512

XCC

6736P

2.0

36

144

205

4

6400

512

HCC

6737P

2.9

32

144

270

4

6400

512

HCC

6745P

3.1

32

336

300

4

6400

512

XCC

6747P

2.7

48

288

330

4

6400

512

XCC

6767P

2.4

64

336

350

4

6400

512

XCC

6787P

2.0

86

336

350

4

6400

512

XCC


Intel® Xeon 6® Mainline Processors

Intel® Xeon® Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s) *

SGX Enclave Size (GB)

Die**

6505P

2.2

12

48

150

3

6400

128

LCC

6515P

2.4

16

72

150

3

6400

128

LCC

6520P

2.4

24

144

210

4

6400

128

HCC

6730P

2.3

32

144

225

4

6400

128

HCC

6740P

2.1

48

288

270

4

6400

128

XCC

6760P

2.2

64

320

330

4

6400

128

XCC


Intel® Xeon 6® Single Socket Processors (RICH I/O)

Intel® Xeon® Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s) *

SGX Enclave Size (GB)

Die**

6511P

2.3

16

72

150

0

6400

128

LCC

6521P

2.6

24

144

225

0

6400

128

HCC

6731P

2.5

32

144

245

0

6400

128

HCC

6741P

2.5

48

288

300

0

6400

128

XCC

6761P

2.5

64

336

350

0

6400

128

XCC

6781P

2.0

80

336

350

0

6400

128

XCC


Intel® Xeon 6® High Performance AI Processor

Intel® Xeon Models

Base Speed (GHz)

Cores

L3 Cache (MB)

Power (W)

UPI Links

DDR5 (MT/s) *

SGX Enclave Size (GB)

Die**

6774P

2.5

64

336

350

0

6400

512

XCC


Notes:

− DDR5 MT/s is 6400 MT/s @ 1 DIMMs per channel (DPC) and 5200 MT/s @ 2 DPC

− Intel® HCC & LCC die processors have delayed availability.

− Intel® Xeon 6 6774P processor usages consistent with Host CPU for AI Servers, use as general compute will invalidate the warranty.

System Management Chipset

HPE iLO 7 ASIC on DC-SCM module required.

Notes: Read and learn more in the iLO QuickSpecs.

Memory

Type

HPE DDR5 Smart Memory

Registered (RDIMM)

DIMM Slots Available

16 DIMM Slots, 8 channels, 2 DIMMs per channel.

Maximum capacity (RDIMM)

4TB

16 x 256 GB RDIMM 6400 MT/s @ 1 DPC and 5200 MT/s @ 2 DPC


Notes: All processors listed support up to 4TB memory.

− The maximum memory speed is limited by the processor selection.

− To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

− The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

− For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.

Memory Protection Features


Advanced ECC

Advanced ECC uses device data correction to detect and correct single and all multi-bit errors within a single DRAM chip.


Adaptive Double DRAM Device Correction (ADDDC)

Advanced Double DRAM Device Correction enables the server to dynamically map out a failing DRAM device. Enabling it can have some impact to system performance under certain workloads. This is set to enabled by default.


Mirroring

Memory Mirroring enables full memory redundancy.


Network Controller

There is no default network controller included. The HPE ProLiant Compute DL340 Gen12 server offers the customer a variety of networking options which are outlined in the Core Options selection in this document.

Expansion Slots

[IMAGE7]

Notes:

– Slot 3 (Primary riser), optional.

– Slot 6 (Secondary riser), optional.

Expansion Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

1 (CEM Primary Riser) - Slot 3

PCIe 5.0

x16

x16

FHHL

1 (CEM Secondary Riser) - Slot 6

PCIe 5.0

x16

x16

FHHL


OCP Expansion Slots

Expansion Slots #

Technology

Bus Width

Connector Width

1 Rear OCP A (OCP 3.0) embedded

1 Rear OCP B (OCP 3.0) optional

2 Front (OCP3.0) optional (1) w/NCSI support

PCIe 5.0

x16

x16


Internal Storage Devices

  • – Optical Drive - Available on SFF/EDSFF and LFF CTO Servers as an option (DVD-ROM or DVD-RW).
  • – Drives - None shipped as standard.

Graphics


Integrated Video

  • – VGA port on DC-SCM module.
  • – DisplayPort with optional optical disk drive.
  • – Video modes up to 1920 x 1200@60Hz (32 bpp).
  • – 16MB Video Memory.

Maximum Storage

Chassis

Drive Type

Drive Capacity

Total Storage

HPE DL340 Gen12 SFF CTO Server

SFF SAS HDD

2.4 TB

57.6 TB (24 x 2.4TB)

HPE DL340 Gen12 SFF CTO Server

SFF SATA SSD

3.84 TB

92.2 TB (24 x 3.84 TB)

HPE DL340 Gen12 SFF CTO Server

SFF SAS SSD

15.36 TB

368.6 TB (24 x 15.36 TB)

HPE DL340 Gen12 SFF CTO Server / EDSFF Drive Cage

SFF NVMe

15.36 TB

552.9 TB (36 x 15.36 TB)

HPE DL340 Gen12 LFF CTO Server

SFF SATA HDD

24 TB

288 TB (12 x 24 TB)

HPE DL340 Gen12 LFF CTO Server

SFF SAS HDD

24 TB

288 TB (12 x 24 TB)

HPE DL340 Gen12 Front GPU CTO Server

SFF SATA SSD

3.84 TB

30.7 TB (8 x 3.84 TB)

HPE DL340 Gen12 Front GPU CTO Server

SFF SAS SSD

15.36 TB

122.8 TB (8 x 15.36 TB)

HPE DL340 Gen12 Front GPU CTO Server / EDSFF Drive Cage

SFF NVMe

15.36 TB

184.3 TB (12 x 15.36 TB)


Storage Controllers

The available controllers are depicted below.

  • – HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.
  • – HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.
  • – HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.
  • – HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller.
  • – HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.
  • – HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller.

Notes: For additional information, please see the HPE Compute MR Gen11 Controller QuickSpecs

Power Supply

  • – HPE 1000W M-CRPS Hot Plug Titanium Hot Plug Power Supply Kit.
  • – HPE 1500W M-CRPS Hot Plug Titanium Hot Plug Power Supply Kit.
  • – HPE 2400W M-CRPS Hot Plug Titanium Hot Plug Power Supply Kit.
  • – HPE 3200W M-CRPS Hot Plug Titanium Hot Plug Power Supply Kit.
  • Notes: The above power supplies have a 96% efficiency.

For information on power specifications and technical content, visit HPE Server power supplies.


European Union ErP Lot 9 Regulation

Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland, or Turkey must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE M-CRPS power supplies are single-output, and part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 are 96% efficient, thus meeting requirements. HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Interfaces

Serial

Optional (rear), requires Serial Enablement Kit.

Video

DC-SCM VGA port (rear)

Optional DisplayPort (front)

Network Ports

None standard. Choice of OCP or standup card required.

HPE iLO Remote Mgmt Port

1 GbE Dedicated (rear)

Front iLO Service Port

1 standard (USB-C, front)

USB 3.2 Gen1 Ports

4 standard (1 front, 2 rear, 1 internal)

Optional, additional USB 2.0 front in 4LFF, SFF, and SFF/EDSFF models.


Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices


HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.


Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/servers/uefi.


UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • − Secure Boot and Secure Start enabled for enhanced security
  • − Embedded UEFI Shell
  • − Operating system specific functionality
  • − Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
  • − Support for > 2.2 TB (using GPT) boot drives.
  • − PXE boot support for IPv6 networks.
  • − USB 3.0 Stack.
  • − Workload Profiles for simple performance optimization.

UEFI Boot Mode only

  • − TPM 2.0 Support.
  • − iSCSI Software Initiator Support.
  • − NVMe Boot Support.
  • − HTTP/HTTPs Boot support as a PXE alternative.
  • − Platform Trust Technology (PTT) can be enabled.
  • − Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

  • − ACPI 6.4 Compliant.
  • − PCIe 5.0 Compliant.
  • − Wake on LAN (WoL) Support.
  • − Microsoft® Logo certifications.
  • − PXE Support.
  • − VGA.
  • − DisplayPort.
  • Notes: This support is on the optional Universal Media Bay.
  • − USB 3.2 Gen1 Compliant.
  • − USB 2.0 Compliant (via Universal Media Bay).
  • Notes: This support is on the optional Universal Media Bay.
  • − Energy Star.
  • − SMBIOS 3.4.
  • − Redfish API.
  • − IPMI 2.0.
  • − Secure Digital 4.0.
  • − 2.0 Support.
  • Notes: Enabling TPM 2.0 no longer requires a TPM module option kit for Gen11. It is an embedded feature.
  • − Advanced Encryption Standard (AES).
  • − Triple Data Encryption Standard (3DES).
  • − SNMP v3.
  • − TLS 1.2.
  • − DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).
  • − Active Directory v1.0.
  • − ASHRAE A3/A4.
  • − European Union ErP Lot 9 Regulation.
  • Notes:
    • −Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.
    • − HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.
    • − Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.
    • − UEFI (Unified Extensible Firmware Interface Forum) 2.8.

Embedded Management


HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo


UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.


Intelligent Provisioning

Hassle-free server and OS provisioning for one or more servers with Intelligent Provisioning.


Learn more at http://www.hpe.com/servers/intelligentprovisioning.


iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation, such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.


OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC Support

Server Utilities


Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.


Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.hpe.com/us/en/servers/smart-update.html.


HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.


RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.


HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.


HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.


A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Compute Gen12 rack, tower, or micro server.


For a complete list of subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw


For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

  • − HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.
  • − Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.
  • − Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.
  • − Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.
  • − HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.
  • − Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.
  • − HPE Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information. http://psnow.ext.hpe.com/doc/a50009218enw


Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard EnterpriseAuthorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details.


Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be completed using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties



Optional Features

Server Management


HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.


HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template-driven approach to

provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 & Gen10 Plus servers. To learn more visit http://www.hpe.com/info/oneview.


HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities. Learn more at https://www.hpe.com/servers/infosight


Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.


Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.


HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.


HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.


HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages. HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.


Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.


One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome



Service and Support

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services


Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting


HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE


Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational


HPE Complete Care Service

HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

  • − A complete coverage approach.
  • − An assigned HPE team.
  • − Modular and fully personalized engagement.
  • − Enhanced Incident Management experience with priority access.
  • − Digitally enabled and AI-driven customer experience.

https://www.hpe.com/services/completecare


HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

  • − Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
  • − HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
  • − HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
  • − Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
  • − HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:

https://www.hpe.com/services/lifecycle


For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu



Other Related Services from HPE Services


HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training


Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.


Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

  • − Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
  • − Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience


Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

GreenLake

GreenLake is the cloud to run and manage your entire hybrid landscape—private, public, and edge. It helps you to:

  • − Streamline IT Operations across compute, storage, and networking without the chaos.
  • − Unify and secure data, as you move faster.
  • − Accelerate AI, from pilot to production.

The result: greater operational efficiency, lower TCO, and faster AI delivery—all from one unified, intelligent platform built for today’s hybrid enterprise.



Configuration Information

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They intend to provide simple starting points to assist you in easily creating and customizing your desired Server solutions. HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.


Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer’s specific workload.


Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options. Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled 30% faster than non-Mainstream orders, have fewer shortages, and better recovery dates. This platform has Mainstream SKUs in the options portfolio and is eligible for an improved Mainstream experience.

Mainstream SKUs are designated with a Mainstream symbol in our configurators.


Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations. All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.


European Union ErP Lot 9 Regulation

Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.


HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.


This section lists the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales

representative for information on configurable product offerings and requirements.

  • − Factory Integrated Models must start with a CTO Server.
  • − Factory Integrated Option (FIO) indicates that this option is only available as a factory installable option.
  • − All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives.
  • − ordered with the server.
  • − Some options may not be integrated at the factory. Contact your local sales representative for additional information.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

  • − FIO indicates that this option is only available as a factory installable option.
  • − All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
  • − Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration- choose one (1) of the following three (3) configurable server models from the table below.

CTO Server

HPE DL340 Gen12 SFF CTO Server

HPE DL340 Gen12 LFF CT Server

HPE DL340 Gen12 Front GPU CTO Server

SKU Number

P71452-B21

P75727-B21

P75728-B21

TAA SKU1

P71452-B21#GTA

P75727-B21#GTA

P75728-B21#GTA

Processor

Not included as standard – select one from available processors

Memory

Not included as standard – select capacity and quantity from available DIMMs

Management

HPE iLO 7 on DC-SCM module (P76981-B21) included

Heatsink

Choice of standard or performance heatsink

Fans

Choice of standard or performance fans

PCIe

Optional primary & secondary CEM riser

OCP 3.0 Slot

Optional

Not supported

Optional

Drive Cage

Box 3 – 8SFF default

Box 3 – 4LFF default

Optional Box 2 SFF/EDSFF

Network Controller

No embedded networking. Choice of OCP 3.0 or standup network adapters

Storage Controller

Choice of optional MR Storage Controllers or Intel® VROC Software RAID

Optical Disk Drive

Optional

Optional

Not supported

USB

Front: One (1) USB 3.2 Gen1 + iLO service port

Rear: Two (2) USB 3.2 Gen1 ports

Internal: One (1) USB 3.2 Gen1 port

Security

Embedded TPM 2.0 (Trusted Platform Module)

Rail Kit

Optional Easy Install rails and CMA

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.


Step 2: Choose Core Options

  • – Choice of 1 Processor model and Heat Sink Kit:
    • Requires necessary Heat Sink for different processor wattage.
  • – Choice of DDR5 memory options:
    • Requires necessary Fan Kits for different memory configurations and subjects to the recommended system ambient temperature.
  • – Choice of Backplane / Drive cage / Enablement kit.
  • – Choice of Riser Cards.
  • – Choice of Storage Controllers, and Storage Controller Cables.
  • – Choice of SSD, HDD, and Optical Drives.
  • – Choice of OS Boot Devices, Intel® VROC.
  • – Choice of Networking options.
    • PCIe standup or OCP 3.0. Requires necessary Fan Kits and subjects to the recommended system ambient temperature.
  • – Choice of Accelerator options.
  • – Choice of Power and Cooling options.
  • – Choice of Management Options.

Step 3: Choose Additional Options

  • – Choice of Security options.
  • – Choice of Software as a Service Management - HPE Compute Ops Management and HPE OneView.
  • – Choice of Embedded Management.
  • – Choice of Rail Kits.
  • – Choice of Rack options.
  • – Choice of Support Services.


Core Options

Step 2: Choice of Core Options

Processor - Select one of the below processors.

Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors

Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE

P71117-B21

Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE

P71118-B21

Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE

P71119-B21

Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE

P71120-B21

Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE

P71121-B21

Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE

P71122-B21

Intel® Xeon 6® Efficient-Core (E-Core) Performance Processors

Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE

P71124-B21

Intel® Xeon 6® Performance-Core (P-Core) Processors

Intel Xeon 6503P 2.8GHz 8-core 135W Processor for HPE

P94926-B21

Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE

P74504-B21

Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE

P74507-B21

Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE

P87302-B21

Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE

P74570-B21

Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE

P74573-B21

Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE

P74578-B21

Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE

P74575-B21

Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE

P74576-B21

Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE

P81591-B21

Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE

P73831-B21

Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE

P73834-B21

Intel Xeon 6774P 2.5GHz 64-core 350W Processor for HPE

P87298-B21

Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE

P73837-B21

Intel® Xeon 6® Mainline Processors

Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE

P74503-B21

Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE

P74506-B21

Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE

P74568-B21

Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE

P74571-B21

Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE

P73829-B21

Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE

P73832-B21

Intel® Xeon 6® Single Socket Processors (RICH I/O)

Intel Xeon 6511P 2.3GHz 16-core 150W Processor for HPE

P74505-B21

Intel Xeon 6521P 2.6GHz 24-core 225W Processor for HPE

P74569-B21

Intel Xeon 6731P 2.5GHz 32-core 245W Processor for HPE

P74574-B21

Intel Xeon 6741P 2.5GHz 48-core 300W Processor for HPE

P73830-B21

Intel Xeon 6761P 2.5GHz 64-core 350W Processor for HPE

P73833-B21

Intel Xeon 6781P 2.0GHz 80-core 350W Processor for HPE

P73836-B21

Memory – Please select one or more memory DIMMs from the below.

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69726-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73447-B21

Notes:

– All SKUs below ship with one processor only. Adequate fans and heatsinks must be selected.

– High-performance fan kit required with 9 DIMMs and above.

– The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.


Backplane / Drive cage / Enablement Kit

Please select from the appropriate CTO Server compatibility category (SFF, LFF, GPU CTO Server)

Compatible with HPE DL340 Gen12 SFF CTO Server

HPE ProLiant Compute DL3XX Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit

P75740-B21

Notes: Supports up to 8 SAS/SATA/NVMe U.3 drives.


HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit

P75741-B21

Notes: Supports up to 8 SAS/SATA/NVMe U.3 drives.


HPE ProLiant Compute DL340 Gen12 8SFF x4 U.2 NVMe Drive Cage Kit

P71465-B21

Notes: Supports up to 8 NVMe U.3 dynamic drives.


HPE ProLiant Compute DL3XX Gen12 Front SFF for 2SFF Enablement U.3 HDD Front Cage Kit

P75807-B21

Notes: Supports up to 2 NVMe U.3 drives.


HPE ProLiant Compute DL340 Gen12 8SFF Primary Front OCP Enablement Kit

P71480-B21

Notes: In SFF CTO server, if 6XX1P processor is selected along with EDSFF drive cage then 'Front OCP enable kit' can be selected only when '16EDSFF x4 R1S DA Cable Kit' is selected.


HPE ProLiant Compute DL340 Gen12 8SFF Secondary Front OCP Enablement Kit

P75768-B21

Notes: In SFF CTO server, if 6XX1P processor is selected along with EDSFF drive cage then 'Front OCP enable kit' can be selected only when '16EDSFF x4 R1S DA Cable Kit' is selected.


HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit

P76449-B21

Notes: Required to support 4EDSFF or front OCP or front NS204i-u configurations.

HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit

P76450-B21

Notes: Supports up to 4 EDSFF drives.


HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

Compatible with HPE DL340 Gen12 LFF CTO Server

HPE ProLiant Compute Gen12 4LFF Backplane Kit

P75760-B21

Notes: Supports up to 4 LFF SAS/SATA drives.


HPE ProLiant Compute DL3XX Gen12 Front LFF for 2SFF Enablement Side-by-Side U.3 HDD Front Cage Kit

P74744-B21

Notes: Supports up to 2 NVMe U.3 drives.


HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

Compatible with HPE DL340 Gen12 Front GPU CTO Server

HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit

P76449-B21

Notes: Required to support 4EDSFF or front OCP or front NS204i-u configurations.

HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit

P76450-B21

Notes: Supports up to 4 EDSFF drives.


HPE ProLiant Compute DL340 Gen12 Front GPU Primary Front OCP Enablement Kit

P77277-B21

HPE ProLiant Compute DL340 Gen12 Front GPU Secondary Front OCP Enablement Kit

P75767-B21

Notes:

– Primary and Secondary Front OCP Enablement Kits must be selected together.

– Cannot be selected if more than (1) 4EDSFF drive cage is selected.

HPE ProLiant Compute DL340 Gen12 Front 2x GPU Enablement Kit

P75813-B21

Notes: Not supported with Intel® Xeon 6® Single Socket Processors (6XX1P).

HPE ProLiant Compute DL340 Gen12 Front 4x GPU Enablement Kit

P75816-B21

Notes: Requires an Intel® Xeon 6® Single Socket Processor (6XX1P).

HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21


Risers

HPE ProLiant Compute DL3X0 Gen12 x16 PCIe Primary Riser Kit

P71430-B21

Notes:

– For use in Slot 3 as the primary riser.

– In SFF CTO Server Slot 3 can be enabled only if 8SFF x4 DAC or 8SFF/EDSFF cable kit or 36EDSFF x2 R1S DA Cable Kit or Internal controller is selected.

HPE ProLiant Compute DL340 Gen12 Rear Captive Riser Kit

P75818-B21

Notes:

– A maximum of 2 rear captive riser kits allowed.

– Available with SFF and LFF CTO servers with Intel® Xeon 6® Single Socket Processors (6XX1P).

– Rear Captive riser cannot be selected with SFF CTO Server if OCPB cable kit is selected.

HPE ProLiant Compute DL3X0 Gen12 Secondary CEM Riser Cage Kit

P75014-B21

Notes:

– For use in Slot 6 as a secondary riser.

– Mixing with NEBS riser is not allowed.

HPE ProLiant Compute DL340 Gen12 NEBS-compliant Riser Kit

P74368-B21

Notes:

– Mixing of NEBS riser with other risers is not allowed.

– A maximum of 2 NEBS risers allowed.

– High-performance heat sink and six high-performance fan kits required.


Storage Controller – Please select a storage controller from the below list.


Drive / Interface Support Matrix

Drive Type

Interface

MR200 & MR400 Series

MR900 Series

HDD

SATA

Supported

Not Supported

SAS

Supported

Not Supported

SSD

SATA

Supported

Not Supported

SAS

Supported

Supported

NVMe

Supported

Supported


Please refer to the storage controller QuickSpecs for more detailed information:

HPE Compute MR Gen11 Controllers QuickSpecs.

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes: These controllers support up to 16 SAS/SATA/NVMe Drives.


HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes:

– This controller supports up to 8 SAS/SATA/NVMe Drives.

– Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

– These controllers support up to 16 SAS/SATA/NVMe Drives.

– Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Notes:

– This controller supports up to 32 SAS/NVMe Drives.

– This controller comes with an onboard battery.

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21


Battery and Hybrid Capacitor

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: If HPE 96W Smart Stg Li-ion Batt 145mm Kit is selected then HPE Smart Hybrid Capacitor 145mm kit cannot be selected and vice versa.

Cables

Compatible with HPE DL340 Gen12 SFF CTO Server

HPE ProLiant Compute DL340 Gen12 8SFF x1 for PCIe Cable Kit

P75742-B21

HPE ProLiant Compute DL340 Gen12 8SFF x4 Direct Attach Cable Kit

P77392-B21

HPE ProLiant Compute DL340 Gen12 8SFF x4 Direct Attach Front OCP Cable Kit

P75745-B21

HPE ProLiant Compute DL340 Gen12 16SFF x4 Direct Attach Cable Kit

P75747-B21

HPE ProLiant Compute DL340 Gen12 16SFF x4 Direct Attach Front OCP Cable Kit

P75750-B21

HPE ProLiant Compute DL340 Gen12 16SFF x1 for OCP Cable Kit

P77711-B21

HPE ProLiant Compute DL340 Gen12 8SFF x2 for PCIe Cable Kit

P90988-B21

HPE ProLiant Compute DL340 Gen12 16SFF x2 for PCIe Cable Kit

P90990-B21

HPE ProLiant Compute DL340 Gen12 24SFF x2 for PCIe Cable Kit

P75752-B21

HPE ProLiant Compute DL340 Gen12 24SFF x1 for PCIe Cable Kit

P75754-B21

HPE ProLiant Compute DL340 Gen12 24SFF x4 Direct Attach Cable Kit

P75756-B21

HPE ProLiant Compute DL340 Gen12 24SFF x2 Direct Attach Cable Kit

P75758-B21

HPE ProLiant Compute DL340 Gen12 8SFF Secondary Front OCP Enablement Kit

P75768-B21

HPE ProLiant Compute DL340 Gen12 8EDSFF x4 Direct Attach Cable Kit

P75778-B21

HPE ProLiant Compute DL340 Gen12 8EDSFF Direct Attach Front OCP Cable Kit

P76584-B21

HPE ProLiant Compute DL340 Gen12 16EDSFF x4 R1S Direct Attach Cable Kit

P75784-B21

HPE ProLiant Compute DL340 Gen12 16EDSFF x4 Direct Attach Cable Kit

P76588-B21

HPE ProLiant Compute DL340 Gen12 24EDSFF x4 R1S Direct Attach Cable Kit

P75786-B21

HPE ProLiant Compute DL340 Gen12 36EDSFF x2 R1S Direct Attach Cable Kit

P75794-B21

HPE ProLiant Compute DL340 Gen12 8SFF/8EDSFF Hybrid Cable Kit

P75800-B21

HPE ProLiant Compute DL340 Gen12 Front SFF for 2SFF Enablement Cable Kit

P77394-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE ProLiant Compute DL340 Gen12 8SFF Primary Front OCP Enablement Kit

P71480-B21


Compatible with HPE DL340 Gen12 LFF CTO Server

HPE ProLiant Compute DL340 Gen12 12LFF for PCIe Cable Kit

P75761-B21

HPE ProLiant Compute DL340 Gen12 Front LFF for 2SFF Enablement Cable Kit

P77395-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

Compatible with HPE DL340 Gen12 Front GPU CTO Server

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x1 for PCIe Cable Kit

P75770-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x4 R1S Direct Attach Cable Kit

P77397-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x4 Direct Attach Cable Kit

P75772-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 4EDSFF Direct Attach Cable Kit

P75774-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 12EDSFF Direct Attach Cable Kit

P75776-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE Drives

Solid State Drives

For SSD selection guidance, please visit https://ssd.hpe.com/

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information:

HPE Solid State Disk Drives QuickSpecs

Read Intensive – 24G SAS - SFF

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use – 24G SAS - SFF

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

Read Intensive – 12G SAS - SFF

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Mixed Use – 12G SAS – SFF

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

Mixed Use – 12G SAS - LFF

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA – SFF

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21


Mixed Use - 6G SATA - SFF

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive – 6G SATA – LFF

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe – SFF

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

Mixed Use - NVMe – SFF

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

Read Intensive – NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21


Mixed Use - NVMe – EDSFF E3.S 1T

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

Very-Read-Optimized – NVMe – EDSFF E3.S 1T

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

SED (Self-Encryption Drive) – SATA SFF

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

SED (Self-Encryption Drive) – NVMe – SFF

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

Hard Disk Drive

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information:

HPE Solid State Disk Drives QuickSpecs

Mission Critical / Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21


Business Critical / Midline - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

Business Critical / Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

SED (Self-Encryption Drive)

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

Optical Drives

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes:

– SFF CTO Server requires the HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit (P74749-B21) and HPE ProLiant Compute Gen12 Optical Disk Drive USB to SATA Signal Cable Kit (P72199-B21).

– LFF CTO Server requires the HPE ProLiant Compute Gen12 LFF ODD/DisplayPort Enablement Kit (P74752-B21) and HPE ProLiant Compute Gen12 Optical Disk Drive USB to SATA Signal Cable Kit (P72199-B21).

– Optical drive is not supported on GPU CTO Server.


OS Boot Device

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information: HPE Solid State Disk Drives QuickSpecs

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Notes:

– Includes (2) NVMe SSDs.

– RAID 1 is preconfigured on the NS204i-u boot device and no additional RAID can be applied.

– HPE ProLiant Compute DL3XX Gen12 NS204i-u Boot Extension Enablement Kit (P71433-B21) is required when NS204i-u v2 is selected.

– SFF and GPU CTO Servers support front mounting of the NS204i-u v2 OS Boot Device which requires HPE ProLiant Compute Gen12 NS204i-u Front Enablement Kit (P74759-B21) and HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit (P76449-B21).

Intel® VROC for HPE

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information: HPE Solid State Disk Drives QuickSpecs.

Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes:

– Supports RAID 0,1,5,10.

– Supports up to 32 NVMe drives, depending on processor.

– SATA drives not supported.

Intel Virtual RAID on CPU RAID 1 E-RTU for HPE

S3Q39AAE

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Notes:

– Supports RAID 1.

– Supports up to 32 NVMe drives, depending on processor.

– SATA drives not supported.

HPE Networking

PCle Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

10/25 Gigabit Ethernet adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE

P87940-B21


100/200/400 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Generic Adapter

P45641-H24

Notes: Requires high-performance fan kit (P58465-B21).

OCP 3.0 Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

10/25 Gigabit Ethernet adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

100 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

Notes: Requires high-performance fan kit (P58465-B21).

PCIe Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

10/25 Gigabit Ethernet adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

100/200/400 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

R4K46A

Notes: Requires high-performance fan kit (P58465-B21).

OCP 3.0 Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21


10/25 Gigabit Ethernet adapters

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

100 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Notes: Requires high-performance fan kit (P58465-B21)


HPE InfiniBand

HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter

P45642-H23

Accelerators

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

Notes: Requires performance fan kit (P58465-B21).


NVIDIA L40S 48GB PCIe Accelerator

S2L70C

Notes:

– Compatible with GPU CTO Server.

– Requires performance fan kit (P58465-B21).

– Requires HPE ProLiant Compute DL3XX Gen12 Front GPU L40S Power Cable Kit (P75110-B21).

HPE Storage Options

Fibre Channel HBAs

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE SN1620E 32Gb 2p FC SecureHBA

S4S01A

HPE SN1720E 64Gb 2p FC SecureHBA

S4T09A

Power and Cooling

HPE ProLiant Compute DL340 Gen12 Standard Heat Sink Kit

P71475-B21

HPE ProLiant Compute Gen12 Performance Heat Sink Kit

P73668-B21


Notes:

CTO Server

Processor TDP

Heat Sink

SFF CTO server with 8SFF kit Qty <= 2 or 4EDSFF kit <= 4

<= 250 W

Standard Heat Sink

> 250 W, <= 350 W

High-Performance Heat Sink

SFF CTO server with 8SFF kit Qty =3 or 4EDSFF kit > 4

<= 350 W

High-Performance Heat Sink

LFF CTO server

<= 350 W

High-Performance Heat Sink

Front GPU CTO server

<= 350 W

High-Performance Heat Sink

NEBS config

<= 350 W

High-Performance Heat Sink


HPE ProLiant DL3X5 Gen11 2U Standard Fan Kit

P58464-B21

HPE ProLiant DL3X5 Gen11 2U Performance Fan Kit

P58465-B21

Notes:

– Fan kit includes one fan, six fans required per server.

– Mixing of Standard and Performance fans is not allowed.

Direct Liquid Cooling (DLC)

HPE ProLiant Compute DL340 Gen12 Direct Liquid Cooling FIO Kit

P84592-B21

HPE ProLiant Compute Gen11 Direct Liquid Cooling 0.65m Quick Disconnect Tube Set FIO Kit

P62038-B21

HPE ProLiant Direct Liquid Cooling 450mm Female-Male Connection Quick Disconnect Tube Set FIO Kit

P62046-B21

Notes:

– A hose kit is required, P62038-B21 is used for SFF/EDSFF and LFF servers and P62046-B21 is used for GPU servers.

– Six (6) performance fan kits are required with the direct liquid cooling kit.

– When configured as the direct liquid cooling system, the server can only be shipped to the customer as the whole rack. Racks below are allowed in the configuration:

  • Rack 42U 800mm x 1200mm Ent G2.
  • Rack 48U 800mm x 1200mm Ent G2.


HPE Power

Power Supplies

HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit

P73190-B21

HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit

P67240-B21

HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit

P82412-B21

HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit

P67244-B21

HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit

P73210-B21

HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit

P67252-B21

HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit

P67248-B21

HPE Hardwire -48VDC 3.5m 1000-1300W Power Cord

P79842-B21

HPE 1000-1300W -48VDC Power Lug Kit

P79845-B21

HPE Hardwire -48VDC 3.5m 2000-2200W Power Cord

P73874-B21

HPE 2000-2200W -48VDC Power Lug Kit

P79839-B21

Notes:

– Mixing of power supplies is not allowed.

– P79842-B21 and P79845-B21 are to be used with HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit.

– P73874-B21 and P79839-B21 are to be used with HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit.

– Only one power cable kit or power cable lug kit needs to be selected with the power supply – It is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: https://poweradvisorext.it.hpe.com/.


Management

HPE ProLiant Compute DL340 Gen12 System Insight Display Module Kit


Notes: Not supported on LFF or GPU CTO server.




Additional Options

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Security

HPE Trusted Supply Chain for HPE ProLiant

P36394-B21

Notes:

− HPE Trusted Supply Chain is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a DL345 Gen11 CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. Learn more at http://www.hpe.com/security.

− This option requires the selection of HPE Gen11 Intrusion Detection Kit (P48922-B21).

− This option requires the selection of either HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features (BD505A) or HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features (512485-B21).

− This option is limited to stand-alone DL345Gen11 CTO servers only. The HPE Trusted Supply Chain configuration will not be available if the server is ordered as factory integrated into a rack.

− One instance of the following Electronic License to Use is required per order (not per server):

− R6X85AAE (HPE Trusted Supply Chain E-LTU).

− This option cannot be selected with TAA instruction SKU or TAA CTO Models.


HPE ProLiant DL385 Gen11 Intrusion Cable Kit

P55713-B21

Notes: This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving distribution, and operation.


HPE Bezel Lock Kit

875519-B21

HPE Gen11 2U Bezel Kit

P50400-B21

Notes: The Bezel lock kit (875519-B21) must be selected along with the bezel kit (P50400-B21).


HPE iLO Common Password FIO Setting

P08040-B21

Notes:

− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.


Server Management

HPE Compute Ops Management

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

HPE Compute Cloud Management Server FIO Enablement

S1A05A

HPE Compute Ops Management Advanced Flex with ProLiant Enablement

S6C28AAE

HPE OneView

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView including 3yr 24x7 Support Track 1-server LTU

E5Y36A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support Bundle Track 1-server LTU

E5Y44A

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Supported Servers – CTO only. No OEM. – Complete list can be found here: Latest Supported Server List:

https://www.hpe.com/info/com-supported-servers

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE Support Services

Installation & Startup Services

HPE ProLiant DL/ML Install Service

U4554E

HPE ProLiant DL/ML Ons Startup Service

U4555E

Tech Care Services

HPE 3 Year Tech Care Essential DL340 Gen12 SP HW Service

H44VWE

HPE 3 Year Tech Care Essential wDMR DL340 Gen12 SP HW Service

H44VXE

HPE 5 Year Tech Care Essential DL340 Gen12 SP HW Service

H44XBE

HPE 5 Year Tech Care Essential wDMR DL340 Gen12 SP HW Service

H44XCE

Rail Kits

Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

To assist in the installation of the server into the rack an optional installation tool is available by contacting your

local services representative.

Notes:

− HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer’s own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

− Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and the number of people to use for any installation.


HPE DL3XX Gen11 Easy Install Rail 2 Kit

P52351-B21

Notes: Not supported on GPU CTO Server.


HPE DL38X Gen10 Plus 2U Cable Management Arm for Rail Kit

P22020-B21

Notes: Not supported on GPU CTO Server.


HPE Cable Management Arm 2 for Ball Bearing Rail Kit

P69776-B21

Notes: This rail kit is supported on GPU CTO Server.


HPE ProLiant Compute DL3XX Gen12 2U Cable Management Arm for Rail Kit

P70744-B21

Notes: This rail kit is supported on SFF and LFF CTO Servers.


HPE Ball Bearing Rail 6 Kit

P69769-B21

Notes: This rail kit is supported on the GPU CTO Server.


HPE Racks

  • − Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks
  • − Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)


HPE Uninterruptible Power Systems (UPS)



Memory

IMAGE 8

General Memory Population Rules and Guidelines:

  • – Install DIMMs only after the corresponding processor is installed.
  • – All DIMMs must be DDR5.
  • – x4 and x8 DIMMs can be mixed in the same channel.
  • – Mixing of non-3DS and 3DS LRDIMMs is not allowed on the same channel.
  • – The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • – The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
  • – To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.
  • – Use of 256GB DIMMs requires a high-performance fan kit.
  • – For additional information, please reference the HPE DDR5 Smart Memory QuickSpecs.


Storage



Technical Specifications

System Unit


Dimensions (Height x Width x Depth)

  • – 8SFF, 24SFF and EDSFF chassis
  • 8.75 x 44.8 x 63.95 cm.
  • 3.45 x 17.64 x 25.18 in.
  • – 12LFF chassis:
  • 8.75 x 44.8 x 65.61 cm.
  • 3.45 x 17.64 x 25.83 in.
  • – GPU chassis:
  • 8.75 x 44.8 x 83.71 cm.
  • 3.45 x 17.64 x 32.96 in.

Weight (approximate)

  • – SFF chassis:
  • Minimum: SFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 MR controller, and 6 standard fans.
    • – 17.6 kg (38.8 lb).
  • Maximum: SFF chassis with 24 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, 1 MR PCIe controller, and 6 performance fans.
    • – 30.9 kg (68.12 lb).

  • – SFF chassis / EDSFF front cage:
  • Minimum: EDSFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.
    • – 17.4 kg (38.36 lb).
  • Maximum: EDSFF chassis with 36 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, and 6 performance fans.
    • – 30.71 kg (67.7 lb).

  • – LFF chassis:
  • Minimum: LFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 MR controller, and 6 standard fans.
    • – 18.98 kg (41.84 lb).
  • Maximum: LFF chassis with 12 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, 1 MR PCIe controller, and 6 performance fans.
    • – 32.88 kg (72.49 lb).

  • – GPU chassis:
  • Minimum: GPU chassis with 1 single-width accelerator, 1 EDSFF drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.
    • – 26.5 kg (58.42 lb).
  • Maximum: GPU chassis with 4 double-wide accelerators, 12 EDSFF drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, and 6 performance fans.
    • – 36.3 kg (80.02 lb).

Input Requirements (per power supply)

Rated Line Voltage

  • – Low-line input voltage: 100 VAC to 120 VAC.
  • – High-line input voltage: 200 VAC to 240 VAC.
  • – 240 VDC for China.

BTU Rating

Maximum

  • – For 3200W M-CRPS Power Supply: 5142 (at 100 VAC), 11699 (at 240VAC).
  • – For 2400W M-CRPS Power Supply: 4268 (at 100 VAC), 8532 (at 240VAC).
  • – For 1500W M-CRPS Power Supply: 3792 (at 100 VAC), 5560 (at 200 VAC).
  • – For 1000W M-CRPS Power Supply: 3044 (at 100 VAC), 3680 (at 200 VAC).

Power Supply Output (per power supply)

Rated Steady-State Power

  • – For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.
  • – For 2400W M-CRPS Power Supply: 1200W: (at 100-127 VAC), 2400W (at 200-240 VAC), 2400W (at 240 VDC) input for China only.
  • – For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.
  • – For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

Maximum Peak Power

  • – For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.
  • – For 2400W M-CRPS Power Supply: 2400W (at 100 to 127 VAC), 2400W (at 200 to 240 VAC), 2400W (at 240 VDC) input for China only.
  • – For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.
  • – For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

For more information on power specifications and technical content, reference the HPE M-CRPS QuickSpecs.

System Inlet Temperature


  • − Standard Operating Support
    • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. The maximum rate of change is 20°C/hr.
    • (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.
    • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
  • − Extended Ambient Operating Support
    • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and
    • 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above
    • 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen12
    • For approved hardware configurations, the supported system inlet range is extended to be 40°C to 45°C (104°F to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen12
    • System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
  • − Non-operating
    • -30° to 60°C (-22° to 140°F). The maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

  • − Operating
    • 8% to 90% - Relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
  • − Non-operating
    • 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

  • − Operating
    • 3050 m (10,000 ft.). This value may be limited by the type and number of options installed. The maximum allowable
  • altitude change rate is 457 m/min (1500 ft./min).
  • − Non-operating
    • 9144 m (30,000 ft.). The maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072


Acoustic Noise

Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m when the product is operating in a 23 ± 2 °C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Idle

LWA,m

5.2 B Entry-SFF

5.6 B Base-LFF

LpAm

39 dBA Entry-SFF

41 dBA Base-LFF

Kv

0.4 B Entry-SFF

0.4 B Base-LFF


Operating

LWA,m

5.7 B Entry-SFF

5.8 B Base-LFF

LpAm

43 dBA Entry-SFF

43 dBA Base-LFF

Kv

0.4 B Entry-SFF

0.4 B Base-LFF


Notes:

− All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109. Operating mode is represented by 50% of CPU.

− The results in this declaration apply only to the specific configuration listed below when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

  • Entry-SFF Configuration: 1x Xeon 6505P CPU, 2x SAS 10K SFF BC HDD, 1x 32GB DIMM, 1x 1000W PSU, 6x STD Fan, 1x MR416i-p PCIe, 1x 1Gb 4p BASE-T OCP Adptr.
  • Base-LFF Configuration: 1x Xeon 6505P CPU, 8x SAS 7.2K LFF 512e ISE HDD, 4x 16GB DIMM, 1x 1000W PSU, 6x STD Fan, 1x MR416i-p PCIe, 1x 1Gb 4p BASE-T OCP Adptr, 1x Gen12 Ht Plg Boot Opt Dev.

− The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

− A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

− The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

− The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95% probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

− The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

− B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

− Systems under abnormal conditions may increase the noise level, people in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.


Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires

manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.



Summary of Changes

Date

Version History

Action

Description of Change

08-Sep-2026

Version 15

Changed

Core Options section was updated.

Added

Intel Xeon 6503P processor.

03-Aug-2026

Version 14

Changed

Core Options section was updated.

Removed

Read Intensive - NVMe – SFF obsolete SKUs.

06-Jul-2026

Version 13

Changed

Standard Features and Core Options sections were updated.

Added

Intel® Xeon 6® High Performance AI Processor (6774P)

01-Jun-2026

Version 12

Changed

Core Options section was updated.

Added

Cables for the HPE ProLiant Compute DL340 Gen12 SFF CTO Server.

Removed

Read Intensive – NVMe - EDSFF E3.S 1T obsolete SKUs.

Mixed Use - NVMe – EDSFF E3.S 1T obsolete SKUs.

SED (Self-Encryption Drive) – SAS SFF obsolete SKUs.

04-May-2026

Version 11

Changed

Core Options section was updated.

Added

Intel® Xeon 6® Performance-Core (P-Core) Processors, Read Intensive – NVMe - EDSFF E3.S 1T, Mixed Use - NVMe – EDSFF E3.S 1T, AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE, HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Generic Adapter, and HPE Power Supplies SKUs.

Removed

SED (Self-Encryption Drive) – SAS SFF

06-Apr-2026

Version 10

Changed

Standard Features and Core Options sections were updated.

Added

Memory F21 rules and Direct Liquid Cooling (DLC) SKUs.

02-Mar-2026

Version 9

Changed

Service and Support and Core Options sections were updated.

Added

Updated GreenLake statement.

Intel® Xeon 6® Performance-Core (P-Core) Processors SKU.

HPE Power SKUs.

Removed

HPE InfiniBand obsolete SKUs.

02-Feb-2026

Version 8

Changed

Standard Features and Core Options sections were updated.

Added

HPE InfiniBand, Power Supplies and HDD SKUs.

Removed

Business Critical / Midline - 12G SAS - LFF Drives, Business Critical / Midline - 6G SATA - LFF Drives, and 100/200/400 Gigabit Ethernet adapters obsolete SKUs.

08-Dec-2025

Version 7

Changed

Core Options section was updated.

Added

HPE 800W Power Supply SKU.

Removed

Read Intensive - NVMe – SFF and HPE InfiniBand obsolete SKUs.

03-Nov-2025

Version 6

Changed

Memory section was updated. Document was modified to comply with

HPE Rebranding strategy.

Added

Memory population Table for P-Core Processors.

04-Aug-2025

Version 5

Changed

Standard Features and Core Options sections were updated.

Added

NVIDIA Ethernet Adapters, EU Lot9 regulations.

07-Jul-2025

Version 4

Changed

Core Options section was updated.

Added: Intel® Xeon 6® Performance-Core (P-Core) Processors SKU, OS

Boot Devices SKUs.

11-Jun-2025

Version 3

Changed

Core Options section was updated.

05-May-2025

Version 2

Changed

Standard Features, Core Options and Additional Options sections were updated.

Added: Backplane / Drive cage / Enablement Kit SKUs, Software as a Service Management Enablement SKU (COM), European Union ErP Lot 9 Regulation section to include Turkey and Ireland.

24-Feb-2025

Version 1

New

New QuickSpecs.
Thuộc tính sản phẩm
Ổ cứng 8SFF
Thông tin
Dịch vụ khách hàng

    CÔNG TY CP CÔNG NGHỆ MÁY CHỦ MẠNG

  • HCM: Agrex Tower, 58 Võ Văn Tần, Phường Xuân Hòa, TP. Hồ Chí Minh
  • Hà Nội: Tòa nhà 44C, Ngõ 4 Đường Phú Mỹ, Phường Từ Liêm, Hà Nội
  • Điện Thoại: SG: (028) 7300 2131 - HN: (024) 7300 2131
  • Mã số thuế : 0309984503 | Email: kinhdoanh@maychumang.vn
Copyright © 2026 Máy chủ mạng. All rights reserved.
