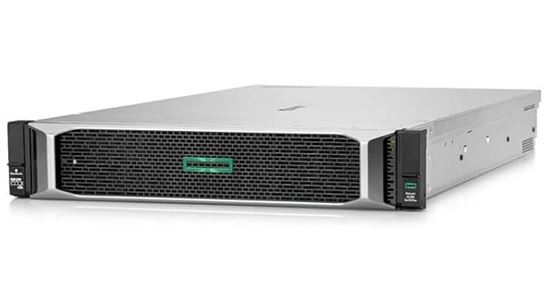

HPE ProLiant DL380 G11 8LFF Silver 4514Y

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen11 Server delivers world-class performance with the right balance of expandability and scalability.

The HPE DL380 Gen11 is designed for supreme versatility and resiliency while being backed by a comprehensive warranty, make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

HPE ProLiant DL380 Gen11

Front View – 8SFF chassis with optional Universal Media Bay shown

Item

Description

Item

Description

1.

Optional Front DisplayPort (via Universal Media Bay)

8.

Power On / Standby button / LED

2.

Box 1 (shown with optional Universal Media Bay installed)

9.

iLO Service Port

3.

Box 2 (Empty)

10.

USB 3.2 Gen1

4.

Quick removal access panel

11.

Box 3 (shown with 8SFF drives populated)

5.

Unit Identification button/LED

12.

Optional USB 2.0 port (via Universal Media Bay)

6.

NIC Status¹

13.

Drive Support Label

7.

Health LED

14.

Serial Number Label Pull Tab

Notes: ¹ Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NICs

Front View – 12LFF chassis shown

Item

Description

Item

Description

1.

Quick removal access panel

6.

iLO Service Port

2.

Unit Identification Button / LED

7.

USB 3.2 Gen1 Port

3.

NIC Status

8.

12 x LFF Media

4.

Health LED

9.

Drive support label

5.

Power On / Standby button / LED

10.

Serial Number Label Pull Tab

Front View –12EDSFF chassis shown

Item

Description

Item

Description

1

12EDSFF drive bays optical drive

7

iLO Service Port

2

Quick removal access panel

8

USB 3.2 Gen1

3

UID Button / LED

9

12x EDSFF Media

4

NIC Status

10

Drive support label

5

Health LED

11

Serial Number Label Pull Tab

6

Power On / Standby button and LED

Internal View 8SFF chassis

Item

Description

Item

Description

1.

Hot Plug Fans¹

6.

Primary Riser

2.

Processors with heatsinks shown

7.

 DIMM slots, shown fully populated in 32 slots²

3.

Optional NS204i-u Boot Device

8.

Drive Backplanes

4.

Hot Plug redundant HPE Flexible Slot Power Supplies

9.

Drive Cages

5.

Secondary Riser (Optional) (Requires second processor)

Notes:

- ¹High performance temperature fans optional

- ²Shown fully populated in 32 slots (16 per processor)

Rear View – Standard for all DL380 Gen11

Item

Description

Item

Description

1.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)

7.

VGA Connector

2.

OCP NIC 3.0 Slots, shown covered

8.

 Serial Port Optional

3.

Secondary Riser. PCIe 5.0 Slots (Slots 4-6)

9.

Dedicated iLO Management Port

4.

Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed

10

USB 3.2 Gen1 Connectors (2)

5.

Optional NS204i-u Boot Device

11

UID Indicator LED

6.

Power Supply

Notes:  ¹ Supports various NICs, and Storage controllers.

Platform Information

Form Factor

- 2U rack

Chassis Types

-  8SFF (SAS/SATA/NVMe) with optional 6SFF Universal Media Bay (P50728-B21), and/or up to 6SFF rear drive bay options.

- 24SFF bay (SAS/SATA/NVMe) with up to 6SFF rear drive bay options for a total 30 SFF drives.

- 8LFF supporting 2SFF front, and up to 4LFF rear or 2SFF rear drive bay options.

- 12LFF with optional 4LFF rear for a total of 16LFF drives.

- 12EDSFF (NVMe) supporting up to 36 EDSFF in front and up to 2SFF rear drive bay option

Notes:

- The 8SFF chassis is upgraded to support up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including 8SFF U.3 x4/x2 Trimode, 8SFF U.3 (x1 Trimode), and 8SFF SAS/SATA. See "Drive Cages" section within this document for options.

- The 8SFF chassis comes with an 8SFF U.3 x1 Trimode drive bay by default in bay 3.

- The Universal Media Bay (P50728-B21) is only available as an option for the 8SFF chassis and can only be populated in Box 1.

- The 2LFF primary and 2LFF secondary rear cages will consume all PCIe slots for the primary and secondary riser, respectively

- The 8LFF chassis cannot be upgraded to 12LFF front in the field.

- The 2LFF primary and 2LFF secondary rear cages supported in LFF chassis only.

System Fans

- High Performance Fan Kit – required for all CPUs over 205W TDP.

Notes:

- On 8SFF CTO server models ship with 4 standard fans.

- The 12LFF and 8LFF CTO server models ship with 4 standard fans.

- The 24SFF CTO server model ships with 6 high performance fans.

- The High-Performance fan kit (P48820-B21) is available to meet ambient temperature requirements.

- In general, the Maximum Performance fan kit is required when rear drives, or >205W Processors SKUs, or High Performance NVMe drives, three drive cages, mid-tray, GPU card, or certain backplanes are populated. See notes under each option category or each individual option for specifics.

Processors – Up to 2 of the following depending on model.

- The 2nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e. 4=4th generation Intel Scalable Series Processors)

- The required firmware for the 5th Generation Intel® Xeon® Processors is not compatible with the DL380 Gen11 system board shipped with the 4th Generation Intel® Xeon® Processors. A new server order (latest firmware system board) is required for the activation of the 5th Generation Intel® Xeon® Processors. Field upgrade from the 4th Generation Intel® Xeon® Processors to the 5th Generation is not supported.

For more information regarding Intel® Xeon® processors, refer to the following https://www.intel.com/xeon.

This table covers the public Intel offering only.

Processor Suffix

Description

Offering

H

Database and Analytics

Highest core counts. Database and Analytics usages benefit from Intel Data Streaming Accelerator (DSA) and Intel In-Memory Accelerator Analytics (IAA)

M

Media Transcode

Optimized for Intel Advanced Vector Extensions (AVX) frequencies to deliver better performance/watt for Media, AI, and HPC workloads.

N

Network/5G/Edge (High Throughput / Low Latency)

Designed for Network Function Visualization and networking workloads, such as: L3 forwarding, 5G User Plane Function, Open vSwitch Data Plane Development Kit, Vector Packet Processing FIB router, VPP IPsec, web server/NGINX, vEPC, vBNG, and vCMTS.

S

Storage and HCI

Optimized for Storage UMA use cases with increased UPI Bandwidth for vs Mainline SKUs.

P

Cloud - IAAS

Designed for cloud IaaS environments to deliver higher frequencies at constrained TDPs.

Q

Liquid Cooling

Liquid cooled processors with higher frequency and performance at same TDP.

U

Single Socket Optimized

Optimized for targeted platforms adequately served by the cores, memory bandwidth and IO capacity

available from a single processor

V

Cloud - SAAS

Optimized for orchestration efficiency that delivers higher core counts and VMs per rack.

Y

Intel SST-PP (Speed Select Technology - Performance Profile)

Intel® SST-PP increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity.

5^th Generation Intel® Xeon® Scalable Processor Family (Platinum)

Intel® Xeon® Models

Frequency

Cores

L3 Cache

Power

UPI

DDR5

SGX Enclave size

Die

Platinum 8593Q Processor

2.2 GHz

64

320 MB

385 W

4

5600 MT/s

512 GB

XCC

Platinum 8592+ Processor

1.9 GHz

64

320 MB

350 W

4

5600 MT/s

512 GB

XCC

Platinum 8592V Processor

2.0 GHz

64

320 MB

330 W

3

4800 MT/s

512 GB

XCC

Platinum 8581V¹ Processor

2.0 GHz

60

300 MB

270 W

0

4800 MT/s

512 GB

XCC

Platinum 8580 Processor

2.0 GHz

60

300 MB

350 W

4

5600 MT/s

512 GB

XCC

Platinum 8570 Processor

2.1 GHz

56

300 MB

350 W

4

5600 MT/s

512 GB

XCC

Platinum 8568Y Processor

2.3 GHz

48

300 MB

350 W

4

5600 MT/s

512 GB

XCC

Platinum 8562Y+ Processor

2.8 GHz

32

60.0 MB

300 W

3

5600 MT/s

512 GB

MCC

Platinum 8558P Processor

2.7 GHz

48

260 MB

350 W

3

5600 MT/s

512 GB

XCC

Platinum 8558 Processor

2.1 GHz

48

260 MB

330 W

4

5200 MT/s

512 GB

XCC

Platinum 8558U1 Processor

2.0 GHz

48

260 MB

300 W

0

4800 MT/s

512 GB

XCC

Notes:

- In 300Watt processor one socket configuration, the air cooling with Performance Heatsinks & Performance Fan Kits can be supported. Field upgrade to two socket is not supported with air cooling solution.

- ¹ Single socket only, no dual socket support

- Intel® Speed Select enabled processors: Platinum 8593Q, 8592V, 8581V, 8568Y+, 8562Y+, 8558P, 8558 and 8558U

5^th Generation Intel® Xeon® Scalable Processor Family (Gold 6)

Intel® Xeon® Models

Frequency

Cores

L3 Cache

Power

UPI

DDR5

SGX Enclave size

Die

Gold 6558Q Processor

3.2 GHz

32

60.0 MB

350 W

3

5200 MT/s

128 GB

MCC

Gold 6554S Processor

2.2 GHz

36

180 MB

270 W

4

5200 MT/s

128 GB

XCC

Gold 6548N Processor

2.8 GHz

32

60.0 MB

300 W

3

5200 MT/s

128 GB

MCC

Gold 6548Y+ Processor

2.5 GHz

32

60.0 MB

250 W

3

5200 MT/s

128 GB

MCC

Gold 6544Y Processor

3.6 GHz

16

45.0 MB

270 W

3

5200 MT/s

128 GB

MCC

Gold 6542Y Processor

2.9 GHz

24

60.0 MB

250 W

3

5200 MT/s

128 GB

MCC

Gold 6538N Processor

2.1 GHz

32

60.0 MB

205 W

3

5200 MT/s

128 GB

MCC

Gold 6538Y+ Processor

2.2 GHz

32

60.0 MB

225 W

3

5200 MT/s

128 GB

MCC

Gold 6534 Processor

3.9 GHz

8

22.5 MB

195 W

3

4800 MT/s

128 GB

MCC

Gold 6530 Processor

2.1 GHz

32

160 MB

270 W

3

4800 MT/s

128 GB

XCC

Gold 6526Y Processor

2.8 GHz

16

37.5 MB

195 W

3

5200 MT/s

128 GB

MCC

5^th Generation Intel® Xeon® Scalable Processor Family (Gold 5)

Intel® Xeon® Models

Frequency

Cores

L3 Cache

Power

UPI

DDR5

SGX Enclave size

Die

Gold 5520+ Processor

2.2 GHz

28

52. 5 MB

205 W

3

4800 MT/s

128 GB

MCC

Gold 5515+Processor

3.2 GHz

8

22.5 MB

165 W

3

4800 MT/s

128 GB

MCC

Notes:

- One or two processor(s)

- Intel® Speed Select enabled processors: N.A.

5^th Generation Intel® Xeon® Scalable Processor Family (Silver)

Intel® Xeon® Models

Frequency

Cores

L3 Cache

Power

UPI

DDR5

SGX Enclave size

Die

Silver 4516Y+ Processor

2.2 GHz

24

45.0 MB

185 W

2

4400 MT/s

64 GB

MCC

Silver 4514Y Processor

2.0 GHz

16

30.0 MB

150 W

2

4400 MT/s

64 GB

MCC

Silver 4510 Processor

2.4 GHz

12

30.0 MB

150 W

2

4400 MT/s

64 GB

EE LCC

Silver 4509Y Processor

2.6 GHz

8

22.5 MB

125 W

2

4400 MT/s

64 GB

EE LCC

Notes:

-  One or two processor(s)

- Intel® Speed Select enabled processors: 4516Y+, 4514Y and 4509Y

5^th Generation Intel® Xeon® Scalable Processor Family (Bronze)

Intel® Xeon® Models

Frequency

Cores

L3 Cache

Power

UPI

DDR5

SGX Enclave size

Die

Bronze 3508U Processor1

2.1 GHz

8

22.5 MB

125 W

N/A

4400 MT/s

64 GB

EE LCC

Notes:

- ¹Single socket capable, no dual socket support

- Intel® Speed Select enabled processors: N.A.

- If 3508U is selected, then 96GB 5600MT/s Memory cannot be selected

- PCIe4.0 only

4^th Generation Intel® Xeon® Scalable Processor Family (Platinum)

Intel® Xeon®® Model

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Platinum 9462 Processor²

2.7 GHz

32

75

350 W

3

4800 MT/s

128

Platinum 8490H Processor

1.9 GHz

60

112.5

350 W

4

4800 MT/s

512

Platinum 8480+ Processor

2.0 GHz

56

105

350 W

4

4800 MT/s

512

Platinum 8470 Processor

2.0 GHz

52

105

350 W

4

4800 MT/s

512

Platinum 8470N Processor

1.7 GHz

52

97.5

300 W

4

4800 MT/s

128

Platinum 8470Q Processor¹

2.1 GHz

52

105

350 W

4

4800 MT/s

512

Platinum 8468 Processor

2.1 GHz

48

105

350 W

4

4800 MT/s

512

Platinum 8468V Processor

2.4 GHz

48

97.5

330 W

3

4800 MT/s

128

Platinum 8462Y+ Processor

2.8 GHz

32

60

300 W

3

4800 MT/s

128

Platinum 8460Y+ Processor

2.0 GHz

40

105

300 W

4

4800 MT/s

128

Platinum 8458P Processor

2.7 GHz

44

82.5

350 W

3

4800 MT/s

512

Platinum 8452Y Processor

2.0 GHz

36

67.5

300 W

3

4800 MT/s

128

Platinum 8444H Processor

2.9 GHz

16

45

270 W

4

4800 MT/s

512

Notes:

- Processors do not ship with heatsinks or fan kits, these must be ordered separately.

- Processors with TDP equal to or greater than 150 W through 350 W require High Performance Heatsink (P48818-B21)

- Processors with TDP greater than 205 W through 350 W and mid-tray drive cage require HPE DL3xx/560 Gen11 High Performance Heatsink (P48905-B21)

- "Q" processors require Max Performance Heatsink (P48817-B21)

- Processors with TDP equal to or less than 150W require Standard Heatsink (P49145-B21)

- ¹Liquid cooled CPUs require Maximum Performance Heat Sink (P48817-B21). One heatsink covers both CPUs.

- ² This is Intel High Bandwidth Memory (HBM) CPU.

4^th Generation Intel® Xeon® Scalable Processor Family (Gold)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Gold 6454S Processor

2.2 GHz

32

60

270 W

4

4800 MT/s

128

Gold 6448H Processor

2.4 GHz

32

60

250 W

3

4800 MT/s

512

Gold 6430 Processor

2.1 GHz

32

60

270 W

3

4400 MT/s

128

Gold 6414U Processor¹

2.0 GHz

32

60

250 W

0

4800 MT/s

128

Gold 6458Q Processor

3.1 GHz

32

60

350 W

3

4800 MT/s

128

Gold 6448Y Processor

2.1 GHz

32

60

225 W

3

4800 MT/s

128

Gold 6444Y Processor

3.6 GHz

16

45

270 W

3

4800 MT/s

128

Gold 6442Y Processor

2.6 GHz

24

60

225 W

3

4800 MT/s

128

Gold 6438N Processor

2.0 GHz

32

60

205 W

3

4800 MT/s

128

Gold 6438Y+ Processor

2.0 GHz

32

60

205 W

3

4800 MT/s

128

Gold 6434 Processor

3.7 GHz

8

22.5

195 W

3

4800 MT/s

128

Gold 6426Y Processor

2.5 GHz

16

37.5

185 W

3

4800 MT/s

128

Gold 6421N Processor

1.8 GHz

32

60

185 W

0

4400 MT/s

128

Gold 6418H

2.1 GHz

24

60

185 W

3

4800 MT/s

512

Gold 6416H

2.2 GHz

18

45

165 W

3

4800 MT/s

512

Gold 5415+ Processor

2.9 GHz

8

22.5

150 W

3

4400 MT/s

128

Gold 5416S Processor

2.0 GHz

16

30

150 W

3

4400 MT/s

128

Gold 5418N Processor

1.8 GHz

24

45

165 W

3

4000 MT/s

128

Gold 5418Y Processor

2.0 GHz

24

45

185 W

3

4400 MT/s

128

Gold 5420+ Processor

2.0 GHz

28

52.5

205 W

3

4400 MT/s

128

Gold 5411N Processor

1.9 GHz

24

45

165 W

0

4400 MT/s

128

Notes:

- Processors do not ship with heatsinks or fan kits, these must be ordered separately.

- Processors with TDP greater than 150W through 350W require High Performance Heatsink (P48818-B21)

- Processors with TDP greater than 205W through 350W and mid-tray drive cage require HPE DL3xx/560 Gen11 High Performance Heatsink (P48905-B21)

- "Q" processors require Max Performance Heatsink (P48817-B21)

- Processors with TDP equal to or less than 150W require Standard Heatsink (P49145-B21)

- 8-Channel DDR5 @ 4800 MT/s

- ¹Single socket processor. No dual socket support.

4^th Generation Intel® Xeon® Scalable Processor Family (Silver)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Silver 4410Y Processor

2.0 GHz

12

30

150 W

2

4000 MT/s

64

Silver 4416+ Processor

2.0 GHz

20

37.5

165 W

2

4000 MT/s

64

Notes:

- Processors do not ship with heatsinks or fan kits, these must be ordered separately.

- Processors with TDP greater than 150W through 350W require High Performance Heatsink (P48818-B21)

- Processors with TDP greater than 205W through 350W and mid-tray drive cage require HPE DL3xx/560 Gen11 High Performance Heatsink (P48905-B21)

- Processors with TDP equal to or less than 150W require Standard Heatsink (P49145-B21)

4^th Generation Intel® Xeon® Scalable Processor Family (Bronze)

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI Links

DDR5

SGX Enclave size (GB)

Bronze 3408U

1.8 GHz

8

22.5

125 W

0

4000 MT/s

64

Notes:

- Processors do not ship with heatsinks or fan kits, these must be ordered separately.

- Processors with TDP equal to or less than 150W require Standard Heatsink (P49145-B21)

Chipset

Intel C741 Chipset

Notes: For more information regarding Intel® chipsets, refer to the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE iLO 6 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model.

Type

HPE DDR5 Smart Memory,

Registered (RDIMM)

DIMM Slots Available

32

16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel

Maximum capacity

8.0 TB

32 x 256 GB RDIMM @ 4800 MT/s (32 DIMMs only with 8SFF or 16SFF, 16 DIMMs maximum with 24SFF)

Notes: The maximum memory speed is limited by the processor selection.

Memory Protection

One of the following depending on model.

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multi-bit errors that occur within a single DRAM chip.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers supported on Primary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Primary Riser1

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 1

2

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

3

PCIe 5.0

X8

X16

Full-height, half-length slot

Proc 1

Primary Riser2

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1**

NA

NA

NA

NA

NA

1

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

2

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 1

3

PCIe 5.0

X16

X16

Full-height, half-length slot

Proc 1

Notes: ** If Slot 1 of HPE DL380 Gen11 2U 3x16 Prim Riser Kit needs to be enabled then 3 x16 Primary Cable Kit (P56073-B21) must be selected.

Secondary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers support on Secondary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Secondary Riser1

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

4

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 2

5

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

6

PCIe 5.0

X8

X16

Full-height, half-length slot

Proc 2

Secondary Riser2

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

4*

NA

NA

NA

NA

NA

4

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

5

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

6

PCIe 5.0

X16

X16

Full-height, half-length slot

Proc 2

Notes: * If Slot 4 of HPE DL380 Gen11 2U 3x16 Sec Riser Kit needs to be enabled then 3 x16 Secondary Cable Kit (P56074-B21) must be selected.

Tertiary Riser

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There is 1 type of riser supported on the Tertiary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Tertiary Riser1 (default)

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

7

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

8

PCIe 4.0

X16

X16

Full-height, full-length slot

Proc 2

Tertiary Riser1 (with Optional Tertiary Riser FIO x8 Enablement Kit P53632-B21)

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

7

PCIe 5.0

X16

X16

Full-height, full-length slot

Proc 2

8

PCIe 5.0

X8

X16

Full-height, full-length slot

Proc 2

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60Hz (32 bpp)

- 16MB Video Memory

Maximum Internal Storage

Drive

Capacity

Configuration

Hot Plug SFF SAS HDD

91.2 TB

24+8+6 x 2.4 TB

Hot Plug SFF SAS SSD

583.3 TB

24 +8+6 15.35 TB

Hot Plug SFF SATA HDD

76 TB

24+8+6 x 2 TB

Hot Plug SFF SATA SSD

291.84 TB

24 +8+ 6 x 7.68 TB

Hot Plug LFF SAS HDD

360 TB

12+4+4x 18 TB (with optional rear LFF drive cage)

Hot Plug LFF SATA HDD

360 TB

12+4+4 x 18 TB (with optional rear LFF drive cage)

Hot Plug SFF NVMe PCIe SSD

374.4 TB

24+ x 15.36 TB + 6 x 960GB<10W (with optional rear Primary and Secondary 2SFF and rear 2SFF drive cages)

EDSFF NVMe

550.8 TB

36EDSFF Drives x 15.3 TB

Notes:

- If all seven Drive cages are selected, then maximum SAS Drive support will be 30 drives (16+8+6).

- Maximum SAS Drive support can be 36 Drives (24+8+4), if one 2SFF Primary / Secondary cage is not selected.

Internal Storage Devices

- Optical Drive

Optional: DVD-ROM, DVD-RW

- Hard Drives

None ship standard

Power Supply

- HPE 1800W-2200W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes: 1 available in 96% efficiency.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: 1 available in 94% efficiency.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

- HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes: 1 available in 96% efficiency.

- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: 1 available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

A standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.  review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Storage Controllers

The available Gen11 controllers are depicted below.

Hybrid RAID Controller

· Intel VROC SATA for HPE ProLiant Gen11

Notes:

- All models feature an embedded storage controller, with embedded software SATA RAID support for up to 14 bays.

- Intel VROC for HPE ProLiant Gen11 is an enterprise, hybrid RAID solution specifically designed for SSDs.

- Intel VROC is a software-based solution utilizing Intel CPU to RAID or HBA direct connected drives.

- RAID Support- 0/1/5/10.

- Windows and Linux OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- iLO Support- IML, Alert, SNMP, AHS.

- iLO Redfish- Redfish Read.

- Intel VROC SATA for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional storage controller will be needed.

- Intel VROC SATA is off by default and must be enabled.

- VROC cannot support mix among SATA/sSATA/tSATA due to VROC limitation. Visit Intel Virtual RAID on CPU for HPE Gen11 User Guide.

· 12LFF: Mix of raid is not allowed across boxes/drive bays. Each LFF drive cage (box1/2/3) has four bays and is separated with different drive group with Intel VROC SATA RAID configuration.

· 8SFF: Mix of raid is not allowed across boxes/drive bays. One box contains 8 bays and is separated into two drive groups (Bay1-4 and Bay5-8) with Intel VROC SATA RAID configuration.

· Intel VROC NVMe for HPE ProLiant Gen11

Notes:

- All models feature 4 x8 PCIe 5.0 connectors per socket for NVMe connectivity, provides support for up to 8 direct attach x4 NVMe bays.

- Only supported on SFF models.

- Intel VROC for HPE ProLiant Gen11 is an enterprise, hybrid RAID solution specifically

designed for NVMe SSDs connected directly to the CPU. Intel VROC is a software-based solution

utilizing Intel CPU to RAID or HBA direct connected drives.

- Intel Virtual RAID on CPU Standard for RAID 0/1/10 (S3Q19A/S3Q39AAE) or Premium SKU for RAID 0/1/5/10 (R7J57A/R7J59AAE) must be ordered to enable RAID support.

- Windows, Linux, VMware OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- Active health monitoring of NVMe M.2 drives requires use of SMART tools.

- Intel VROC NVMe for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional Tri-

- Mode controller will be needed.

- For NVMe SSDs only, there is no PCIe card support.

Essential RAID Controller

- HPE Smart Array E208e-p SR Gen10 Controller

Tri-Mode Controller

- HPE MR416i-p Gen11 Controller

- HPE MR416i-o Gen11 Controller

- HPE MR216i-p Gen11 Controller

- HPE MR216i-o Gen11 Controller

- HPE MR408i-o Gen11 Controller

- HPE SR932i-p Gen11 Controller^1,2

Notes:

- PE80xx NVMe drives are not supported.

- ¹Requires x16 physical and electrical riser slot

- ²If second controller is required, must select secondary riser

- Controllers with cache require either P02377-B21 HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit or P01366-B21 HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit.

- Requires HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit (P48918-B21)

Interfaces

Serial

Optional Rear

DisplayPort

1 optional front DisplayPort via Universal Media Bay

VGA Port

1 standard, rear for all chassis.

1 Optional front DisplayPort (Via Universal Media Bay)

Notes: Both ports are not active simultaneously.

Network Ports

Nonstandard. Choice of OCP networking card or stand-up networking card required. BTO models will come pre-selected with a primary networking card.

HPE iLO Remote Management Network Port

1 Gb Dedicated, rear

Front iLO Service Port

1 standard (Not available when System Insight Display Kit is ordered)

USB 3.2 Port Gen1

Up to 4 total: 1 front (3.2 Gen1), 2 rear (3.0), 2 internal (secure – 1 – 3.2 Gen1, 1 – 2.0), 1 optional USB 2.0 front via Universal Media Bay

System Insight Display

(SID)

Optional

Notes: Not shipping as standard. Available as a CTO option or as a field upgrade (P48819-B21).

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

- Secure Boot and Secure Start enable for enhanced security

- Embedded UEFI Shell

- Operating system specific functionality

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

- Support for > 2.2 TB (using GPT) boot drives

- PXE boot support for IPv6 networks

- USB 3.0 Stack

- Workload Profiles for simple performance optimization

UEFI Boot Mode only

- TPM 2.0 Support

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- iSCSI Software Initiator Support.

- NVMe Boot Support

- HTTP/HTTPs Boot support as a PXE alternative.

- Platform Trust Technology (PTT) can be enabled.

- Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

- ACPI 6.4 Compliant

- PCIe 5.0 Compliant

- Wake on LAN (WoL) Support

- Microsoft® Logo certifications

- PXE Support

- VGA

- DisplayPort

Notes: This support is on the optional Universal Media Bay.

- USB 3.2 Gen1 Compliant

- USB 2.0 Compliant (via Universal Media Bay)

Notes: This support is on the optional Universal Media Bay.

- Energy Star

- SMBIOS 3.4

- Redfish API

- IPMI 2.0

- Secure Digital 4.0

- 2.0 Support

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- Advanced Encryption Standard (AES)

- Triple Data Encryption Standard (3DES)

- SNMP v3

- TLS 1.2

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

- Active Directory v1.0

- ASHRAE A3/A4

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit DL380 Gen11 Extended Ambient Temperature Guidelines

- European Union ErP Lot 9 Regulation

Notes:

- Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

- HPE is on target to fulfil compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

- Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

- UEFI (Unified Extensible Firmware Interface Forum) 2.8

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at https://www.hpe.com/info/iLO.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/connect/s/product?language=en_US&kmpmoid=5219984&tab=manuals

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC Support

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at https://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers. Use with an iLO Advanced License to unlock full capabilities.

Learn more at https://www.hpe.com/servers/iLOamplifierpack

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at https://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at https://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on premise, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license all provided by the same tool. Learn more at https://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in HPE GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the HPE GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

- UEFI Secure Boot and Secure Start support

- Tamper-free updates – components digitally signed and verified

- Immutable Silicon Root of Trust

- Ability to rollback firmware

- FIPS 140-2 validation

- Secure erase of NAND/User data

- Configurable for PCI DSS compliance

- TPM (Trusted Platform Module) 2.0 option

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

- Bezel Locking Kit option

- Support for Commercial National Security Algorithms (CNSA)

- Chassis Intrusion detection option

- Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available.

https://www.hpe.com/support/ProLiantServers-Warranties.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more visit https://www.hpe.com/info/oneview.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

- A complete coverage approach -- edge to cloud

- An assigned HPE team

- Modular and fully personalized engagement

- Enhanced Incident Management experience with priority access

- Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

- Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

- HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.

- HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.

- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

- Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

- Get faster time to market

- Save on TCO, align costs to business

- Scale quickly, meet unpredictable demand

- Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

https://www.hpe.com/services

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Pre-Configured models ship with the configurations below.

- Options can be selected from the Core or Additional options section of this QuickSpecs.

- Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.

- Network Choice models do not include embedded LOM.

SKU Number

P52560-B21

P52560-291

P52560-421

P52561-B21

P52561-291

P52561-421

P52562-B21

P52562-291

P52562-421

Model Name

P52560‑B21 & P52560‑291:
HPE ProLiant DL380 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R MR408i-o NC 8SFF 800W PS Server

P52561‑B21 & P52561‑291:
HPE ProLiant DL380 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 800W PS Server

P52562‑B21 & P52562‑291:
HPE ProLiant DL380 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R NC 12LFF 800W PS Server

P52560‑421:
HPE ProLiant DL380 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS Server

P52561‑421:
HPE ProLiant DL380 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS Server

P52562‑421:
HPE ProLiant DL380 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R NC 12LFF 1000W PS Server

Chassis

HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen11 12LFF NC Configure-to-order Server

Processor

4410Y (12 core, 2.0 GHz, 150W)

5416S (16 core, 2.0 GHz, 150W)

4410Y (12 core, 2.0 GHz, 150W)

Number of Processors

One

Memory

32 GB (1x32 GB, 4800 MT/s)
Notes: Runs at 4000 MT/s due to processor limitation.

32 GB (1x32 GB, 4800 MT/s)
Notes: Runs at 4400 MT/s due to processor limitation.

32 GB (1x32 GB, 4800 MT/s)
Notes: Runs at 4000 MT/s due to processor limitation.

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Notes: No embedded networking

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

Embedded SATA controller (AHCI or Intel SATA hybrid RAID controller)

Included Hard Drives

None ship standard, 8 SFF supported

None ship standard, 8 SFF supported

None ship standard, 12 LFF supported

Optical Drive

Optional DVD-ROM Optional via Universal Media Bay External support only

Optional DVD-ROM Optional via Universal Media Bay External support only

Not supported

Expansion Slots

3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2-processor configuration

Power Supply

P52560‑B21 & P52560‑291:
1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P52561‑B21 & P52561‑291:
1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P52562‑B21 & P52562‑291:
1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P52560‑421:
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P52561‑421:
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P52562‑421:
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Fans

4x Standard Fans

Management

HPE iLO 6

Rail Kit

HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

SKU Number

P60740-AA1

Model Name

HPE ProLiant DL380 Gen11 4416+ 2.1GHz 20-core 1P 32GB-R MR408i-o NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server

Processor

4416+ (20 core, 2.0 GHz, 165W)

Number of Processors

One with high performance heatsink

Memory

32 GB (1x32 GB, 4800 MT/s)
Notes: Runs at 4000 MT/s due to processor limitation.

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

Included Hard Drives

None ship standard, 8 SFF supported

Optical Drive

Optional DVD-ROM Optional via Universal Media Bay External support only

Expansion Slots

3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2-processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4x Standard Fans

Management

HPE iLO 6

Rail Kit

HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit

Security

TPM (Trusted Platform Module)

Form Factor

2U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

SKU Number

P70456-291

P70456-421

P70457-291

P70457-421

P70458-421

Model Name

P70456‑291:
HPE ProLiant DL380 Gen11 4509Y 2.6GHz 8-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS JP Server

P70457‑291:
HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS JP Server

HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16-core 1P 32GB-R MR416i-p NC 12LFF 1000W PS EMEA Server

P70456‑421:
HPE ProLiant DL380 Gen11 4509Y 2.6GHz 8-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS EMEA Server

P70457‑421:
HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS EMEA Server

Chassis

HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server

HPE ProLiant DL380 Gen11 12LFF NC Configure-to-order Server

Processor

4509Y (8 core, 2.6 GHz, 125W)

4514Y (16 core, 2.0 GHz, 150W)

4514Y (16 core, 2.0 GHz, 150W)

Number of Processors

One

Memory

32 GB (1x32 GB, 5600 MT/s)
Notes: Runs at 4400 MT/s due to processor limitation.

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Notes: No embedded networking

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Notes: No embedded networking

Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

Included Hard Drives
