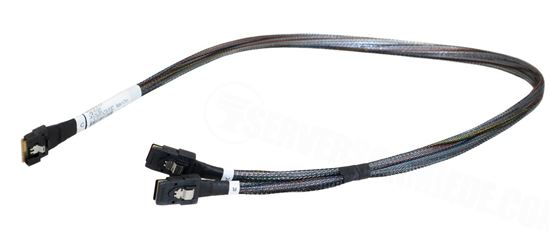

HPE ProLiant DL380 Gen11 LFF Front Tri-Mode Cable Kit (P56995-B21)

HPE ProLiant DL380 Gen11 LFF Front Tri-Mode Cable Kit (P58791-001)

Nhà sản xuất: HPE
1.840.000 ₫

Chia sẻ sản phẩm:


LFF cabling
LFF box 2 or 3: System board

LFF box 2 or 3: System board

Cable part number Color From To
P51559-0011 Orange Drive backplane System board
1Option kit: P76474-B21
LFF box 2 or 3: Primary type-o controller

LFF box 2 or 3: Primary type-o controller

Cable part number Color From To
P51559-0011 Orange LFF box 2 or 3 Primary type-o controller
1Option kit: P76474-B21
LFF box 1 and 7: Primary type-o controller

LFF box 1 and 7: Primary type-o controller

Cable part number Color From To
P51560-0011 Orange LFF box 1 and 7* Primary type-o controller
1Option kit: P56995-B21

*This is a Y-cable. If there is no box 7, then one end will remain loose.

LFF box 4 and 5: Primary type-o controller

LFF box 4 and 5: Primary type-o controller

Cable part number Color From To
P51561-0011 Orange LFF box 4 and 5 Primary type-o controller
1Option kit: P48823-B21
LFF box 2 and 3: Primary type-p controller

LFF box 2 and box 3 cabling

Cable part number Color From To
P58791-0011 Orange LFF box 2 and 3 Primary type-p controller
1Option kit: P56995-B21
LFF box 1 and 4: Primary type-p controller

LFF box 1 and 4: Primary type-p controller

Cable part number Color From To
P46047-0011 Orange LFF box 1 and 4 Primary type-p controller
1Option kit: P48823-B21
LFF box 1 and box 7: Primary type-p controller

LFF box 1 and box 7: Primary type-p controller

Cable part number Color From To
P51563-0011 Orange LFF box 1 and box 7 Primary type-p controller
1Option kit: P56995-B21
2 LFF box 4 and 5: Tertiary type-p controller

2 LFF box 4 and 5: Tertiary type-p controller

Cable part number Color From To
P51558-0011 Orange Drive backplane Tertiary type-p controller
1Option kit: P48823-B21
2 LFF box 5: Primary type-p controller

2 LFF box 5: Primary type-p controller

Cable part number Color From To
P51558-0011 Orange Drive backplane Primary type-p controller
1Option kit: P48823-B21
2 LFF box 4: Secondary type-p controller

2 LFF box 4: Secondary type-p controller

Cable part number Color From To
P51558-0011 Orange Drive backplane Secondary type-p controller
1Option kit: P48823-B21
