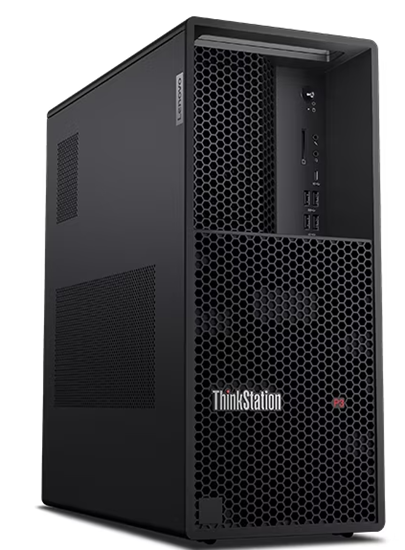

Lenovo ThinkStation P3 Tower Workstation Ultra 7 265

• Intel^® Core™ Ultra 5 225 Processor (E-cores up to 4.40 GHz P-cores up to 4.90 GHz with Turbo Boost, 10 Cores, 10 Threads, 20 MB Cache)

• Intel^® Core™ Ultra 5 235 Processor with vPro^® (E-cores up to 4.40 GHz P-cores up to 5.00 GHz with Turbo Boost, 14 Cores, 14 Threads, 24 MB Cache)

• Intel^® Core™ Ultra 5 245 Processor with vPro^® (E-cores up to 4.50 GHz, P-cores up to 5.10 GHz with Turbo Boost, 14 Cores, 14 Threads, 24 MB Cache)

• Intel^® Core™ Ultra 5 245K Processor with vPro^® (E-cores up to 4.60 GHz P-cores up to 5.20 GHz with Turbo Boost, 14 Cores, 14 Threads, 24 MB Cache)

• Intel^® Core™ Ultra 7 265 Processor with vPro^® (E-cores up to 4.60 GHz P-cores up to 5.20 GHz with Turbo Boost, 20 Cores, 20 Threads, 30 MB Cache)

• Intel^® Core™ Ultra 7 265K Processor with vPro^® (E-cores up to 4.60 GHz P-cores up to 5.40 GHz with Turbo Boost, 20 Cores, 20 Threads, 30 MB Cache)

• Intel^® Core™ Ultra 9 285 Processor with vPro^® (E-cores up to 4.60 GHz P-cores up to 5.40 GHz with Turbo Boost, 24 Cores, 24 Threads, 36 MB Cache)

• Intel^® Core™ Ultra 9 285K Processor with vPro^® (E-cores up to 4.60 GHz P-cores up to 5.50 GHz with Turbo Boost, 24 Cores, 24 Threads, 36 MB Cache)

• Windows 11 Pro

• Linux

Up to 36 trillion operations per second (TOPS) AI performance

• Integrated Intel^® Graphics

• NVIDIA RTX™ A400 4GB GDDR6

• NVIDIA RTX™ A1000 8GB GDDR6

• NVIDIA RTX™ 2000 Ada Generation 16GB GDDR6

• NVIDIA RTX™ 4000 Ada Generation 20GB GDDR6

• NVIDIA RTX™ 5000 Ada Generation 32GB GDDR6

• Up to 192GB DDR5*, 5600MT/s* (UDIMM)

• Up to 256GB DDR5, 6400MT/s* (CUDIMM)

• 128GB DDR5, 4400MT/s*, (UDIMM)

*Memory spec frequency listed; system support frequency may vary by configuration

• Up to 2TB M.2 PCIe NVMe SSD Gen5 performance

Up to 7 total drives:

• Max M.2 = x 4 (16TB)**

• Max 2.5" = x 3 (23TB) or 3.5" = x 3 (36TB)

Up to 6 total drives:

• Max M.2 = x 2 (8TB)**

• Max 2.5" = x 4 (30TB) or 3.5" = x 4 (48TB)

Storage Type Capacity*

• Up to 4TB M.2 PCIe NVMe SSD

• Up to 7.86TB 2.5" SATA SSD

• Up to 12TB 3.5" SATA HDD

*Any combination of storage to equal maximum storage drives; Total storage dependent on power supply unit (PSU) selected

** Optional M.2 Add In Card (up to 1 x 4TB) adds additional storage

• M.2 = 0 / 1 / 5

• SATA = 0 / 1 / 5 / 10

Realtek^®

• 1100W (92% energy-efficient)

• 750W (92% energy-efficient)

• 500W (92% energy-efficient)

Front:

• 2 x USB-A (USB 5Gbps)

• 2 x USB-A (USB 10Gbps)

• USB-C^® (USB 20Gbps) data transfer only

• Headphone / mic combo

• Microphone

• Optional: 3-in1 media card reader

Rear:

• HDMI^® 2.1 (supports resolution up to 4K@60Hz)

• 2 x DisplayPort™ 1.4

• 2 x USB-A (USB 5Gbps) one with keyboard power on

• Optional: 2 x USB-A (hi-speed USB)

• Ethernet (RJ45)

• Audio out

Optional Expansion Slots:

• Serial port

• Expansion cards

• Flex IO (supports one optional port from HDMI^®, VGA, USB-C^® (with DisplayPort™ functionality) & DisplayPort™)

*USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Optional WLAN*:

• WiFi 7 BE200 802.11BE (2 x 2)

• Bluetooth^® 5.4 vPro

*WiFi 7 requires Windows 11 OS, as well as a separate WiFi 7 router and / or other networking devices to meet full WiFi 7 requirements. It’s backwards compatible with prior WiFi standards & available only in countries where WiFi 7 is supported.

415mm x 180mm x 370mm / 16.34” x 7.09” x 14.57”

Starting at 8.65kg / 19.07lbs

Black

• 95% post-consumer content (PCC) used in front bezel

• 90% expanded polyethylene (EPE) used in cushion

• Plastic-free packaging with 90% recycled and/or Forest Stewardship Council (FSC)-certified content

*Product packaging shall contain, on average, a minimum total percentage of 90% by weight of any combination of the following materials: Recycled content, biobased plastic, non-wood biobased fiber material, and/or sustainably forested mate

• ENERGY STAR^®*

• RoHS

• TCO 10.0

• EPEAT^® Gold with Climate+

*Available on select model configurations.

• Altair^®

• ANSYS^®

• Autodesk^®

• AVID^®

• Barco^®

• Bentley^®

• Dassault^®

• McKesson^®

• Nemetschek^®

• PTC^®

• Siemens^®

See the complete list of ISV certifications

• Discrete Trusted Platform Module (dTPM) 2.0

• BIOS Administrator password

• BIOS Power-on password

• UEFI Secure Boot

• Self-healing BIOS

• Optional: Chassis intrusion switch

• Optional: Cable lock

• Optional: E-lock

• Kensington Security Slot™

• Padlock Loop

• Lenovo Commercial Vantage

• Office 365 (trial)

• ThinkStation P3 Tower Gen 2 (Intel)

• USB Keyboard

• USB Mouse

• Quick Start Guide
