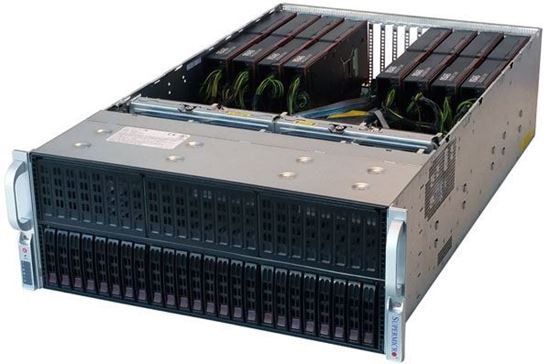

Form Factor |
- 4U Rackmountable
- Rackmount Kit (MCP-290-00057-0N)
|
Model |
|
|
Height |
|
Width |
|
Depth |
|
Weight |
- Net Weight: 65.5 lbs (29.7 kg)
- Gross Weight: 100 lbs (45.3 kg)
|
Available Colors |
|
|
Hot-swap |
- 24 Hot-swap 2.5" hard drive bays
|
|
PCI-Express |
- 8 PCI-E 3.0 x16 (double-width) slots
- 2 PCI-E 3.0 x8 (in x16) slots
- 1 PCI-E 2.0 x4 (in x16) slot
|
|
Fans |
- 8 Hot-swap 92mm cooling fans
|
Shrouds |
- 1 Air Shroud (MCP-310-41808-0B)
|
|
1600W 1U Redundant Power Supplies with PMBus |
Total Output Power |
- 1000W: 100 – 127Vac
- 1600W: 200 – 240Vac
|
Dimension (W x H x L) |
|
Input |
- 100-127Vac / 12.9A Max / 50-60Hz
- 200-240Vac / 9.5A Max / 50-60Hz
|
+12V |
- Max: 82A / Min: 0.1A (100-127Vac)
- Max: 132A / Min: 0.1A (200-240Vac)
|
12V SB |
|
Output Type |
- 25 Pairs Gold Finger Connector
|
Certification |
 Platinum Level [ Test Report ] |
|
CPU |
- Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
- 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
|
FAN |
- 4-pin fan headers with tachometer status monitoring
- Low noise fan speed control mode
|
Temperature |
- Monitoring for CPU and system environment
- Thermal Control for 8 fan connectors
|
Other Features |
- Chassis intrusion detection
|
|
RoHS |
|
Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
