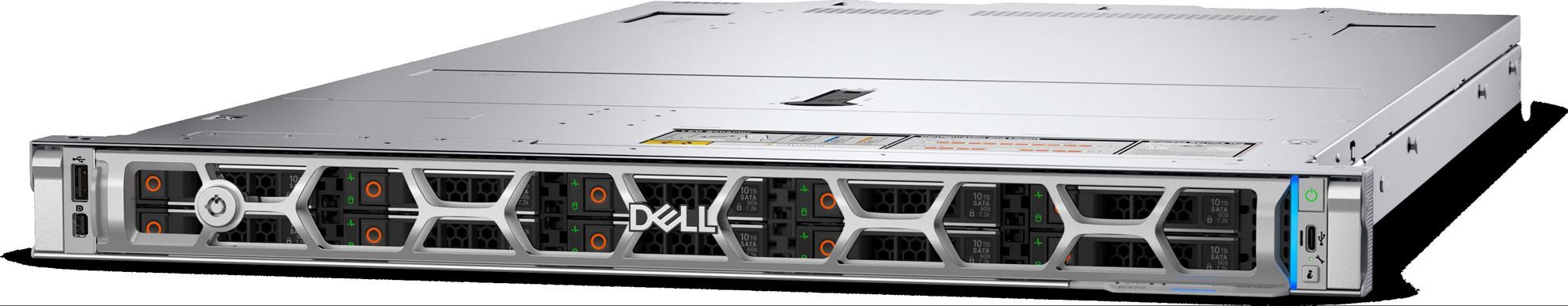

Dell PowerEdge R470 8x 2.5" 6505P

Processor

One Intel^® Xeon^® 6 E-core processor with up to 144 cores
One Intel^® Xeon^® 6 P-core processor with up to 86 cores with R1S option

Operating System

Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Windows Server
Windows Server Datacenter

Accelerators

Up to 4 x75 W SW

DPU
NVIDIA BlueField-3 2x200 GbE B3220

Memory

DIMM Speed
Up to 6400 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR5 DIMM slots

Maximum RAM
Intel^® Xeon^® 6 E-core processor - supports RDIMM 1 TB max
Intel^® Xeon^® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max

Storage

Front Bays
8 x EDSFF E3.S Gen5 NVMe
16 x EDSFF E3.S Gen5 NVMe
8 x 2.5-inch SATA/NVMe
10 x 2.5 - inch SATA/NVMe (with 4 x 2.5 -inch universal)
4 x 3.5 - inch SATA max (only supported with rear 2 x E3.S drives; not supported as standalone front-only configuration)
10 x 2.5 - inch SATA/NVMe(SSD) (with 4 x 2.5 -inch universal) max 614.4 TB

Mid Bay
N/A

Rear Bay
2 x EDSFF E3.S Gen5 NVMe

Storage Controllers

Internal Controllers
PERC H365i DC-MHS Front
PERC H965i DC-MHS Front
PERC H365i DC-MHS  adapter
PERC H965i DC-MHS  adapter

External Controllers
N/A

Software RAID
N/A

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
M.2 interposer with up to 2 x M.2 NVMe SSDs
USB

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
Secure Erase
System Lockdown (requires iDRAC10 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified

Management

Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

Power Supplies

800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W 277 Vac and HVDC Titanium, hot swap redundant
1400W -48v DC Titanium, hot swap redundant

Cooling
Air cooling

Fans
Up to 4 sets (dual fan module) hot swappable fans

Ports

Network Options
OCP NIC card 3.0 : 2 slots on the front or 2 slots on the rear (optional) Slot Numbers: 2, 5, 31, 32

Embedded NIC
1 Gb dedicated BMC Ethernet port

Front Ports
1 x USB 2.0 Type - C port
1 x Mini-DisplayPort (optional)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O configuration)

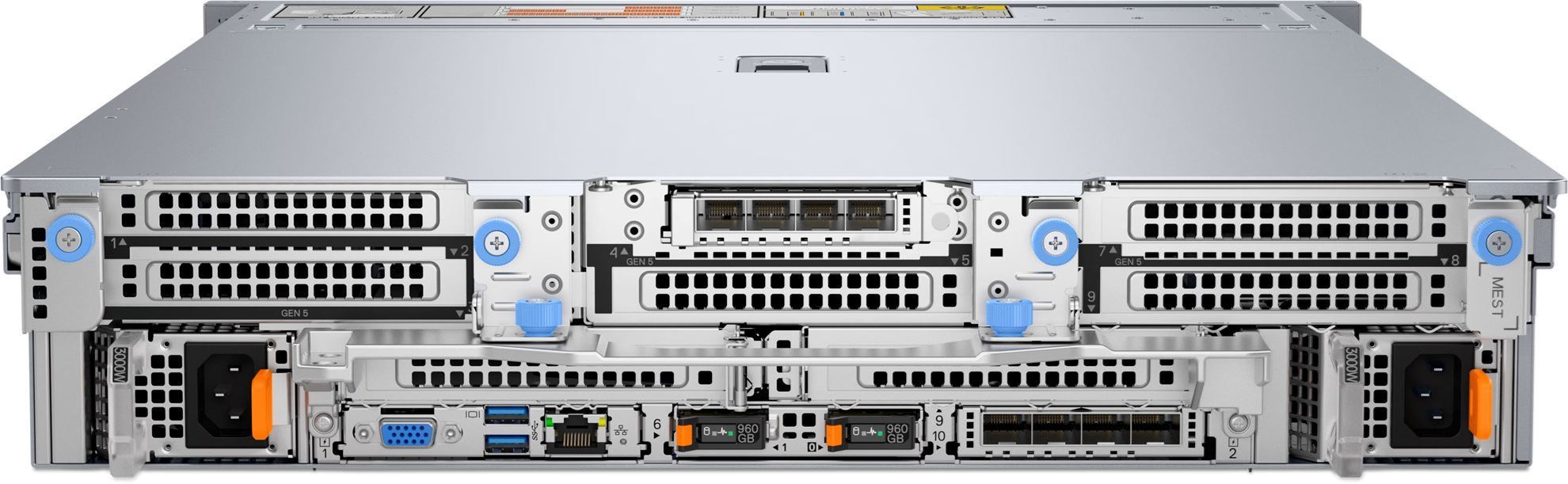

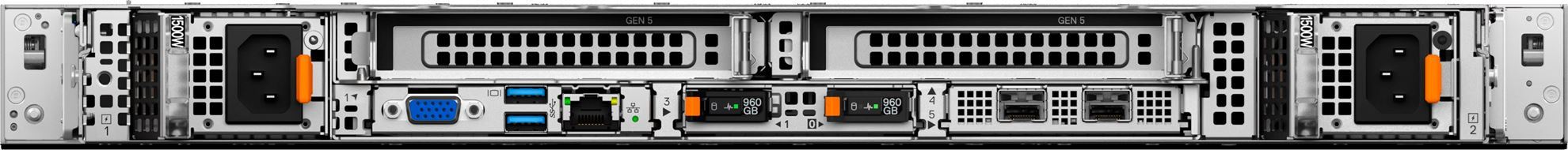

Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA

Internal Ports
1 x USB 3.1 Type A port

Slots

PCIe
Up to two PCIe slots (x16 connector)
Slot 1: 1 x16 Gen5 Full Height
Slot 4: 1 x16 Gen5 Full Height
Slot 1: 1 x16 Gen5 Low Profile
Slot 4: 1 x16 Gen5 Low Profile

Gen5 PCIe slots
2

Video
1 x VGA
1 x Mini-DisplayPort (optional)

Bezel

Security Bezel (optional)

Form Factor

1U rack server

Dimensions & Weight

Height
42.80 mm (1.69 in.)

Width
 482.00 mm (19.0 in.)

Depth
816.92 mm (32.16 in.) with bezel (Rear I/O)
815.14 mm (32.09 in.) without bezel  (Rear I/O)
829.44 mm (32.09 in.) without bezel (Front I/O)
Note: Front I/O configuration will not have a bezel.

Weight
19.11 Kg (42.13 lb)

Rack Support

ReadyRails^™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
ReadyRails static rails for 4-post and 2-post racks.
