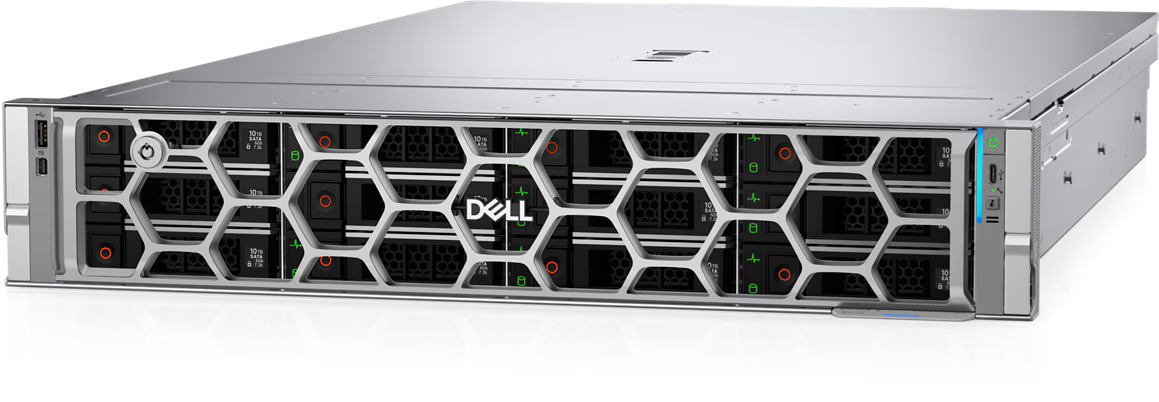

Dell PowerEdge R570 12x 3.5" 6511P

Intel Xeon 6 Performance 6511P 2.3G, 16C/32T, 72M Cache, Turbo, (150W) DDR5-6400
16GB RDIMM, 6400MT/s, Single Rank
Dell 4TB Hard Drive SAS ISE 12Gbps 7.2K 512n 3.5in Hot-Plug, AG Drive
PERC H965i Controller Front Load, 22.5 Gbps SAS/NVMe, 8GB NV Cache
Broadcom 5719 Quad Port 1GbE Base-T Adapter
iDRAC10, Enterprise 17G
Slots: Up to 6 PCIe slots
Storage: 12 x 3.5-inch Hot-plug SAS/SATA/NVMe (HDD/SSD)
Dual, Hot-plug, Power Supply Fully Redundant (1+1), 800W, Mixed Mode
Jumper Cord - C13/C14, 4M, 250 V, 10A
Rack (1U), ReadyRails Sliding Rails
Warranty: 3 Year ProSupport

Là người đầu tiên đánh giá sản phẩm này

Nhà sản xuất: Dell

Gọi để biết giá

Số lượng:

Thông số
Thuộc tính sản phẩm

Processor

One Intel^® Xeon^® 6 E-core processor with up to 144 cores
One Intel^® Xeon^® 6 P-core processor with up to 86 cores with R1S option

Operating System

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Accelerators

Up to 3 x 400W DW; Up to 4 x 75W SW

DPU
NVIDIA BlueField-3 2x200 GbE B3220

Memory

DIMM Speed

Up to 6400 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR5 DIMM slot

Maximum RAM
Intel^® Xeon^® 6 E-core processor - supports RDIMM 1 TB max

Intel^® Xeon^® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max

Storage

Front Bays

12 x 3.5-inch SATA (HDD) RAID
8 x 2.5-inch NVMe RAID
8 x 2.5-inch NVMe
8 x 2.5-inch SATA
8 x 2.5-inch SATA/Universal
16 x 2.5-inch SATA RAID
24 x 2.5-inch SATA
8 x EDSFF E3.S (hot-aisle) Gen5 NVMe
8 x EDSFF E3.S (cold-aisle) Gen5 NVMe
16 x EDSFF E3.S (cold-aisle) Gen5 NVMe
16 x EDSFF E3.S (hot-aisle) Gen5 NVMe
32 x EDSFF E3.S (hot-aisle) Gen5 NVMe

Mid Bay
N/A

Rear Bay
4 x EDSFF E3.S Gen5 NVMe

Storage Controllers

Internal Controllers
PERC H365i DC-MHS Front

PERC H965i DC-MHS Front

PERC H365i Adapter

PERC H965i Adapter

External Controllers
N/A

Software RAID
N/A

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)

USB

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

Management

Embedded / At-the-Server
iDRAC
iDRAC Direct
iDRAC RESTful API with Redfish
RACADM CLI
iDRAC Service Module (iSM)

Tools
IPMI
Dell System Update
Enterprise Catalogs
Dell Repository Manager
Server Update Utility (SUU)

Power Supplies

800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
1100 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W 277 Vac and HVDC Titanium, hot swap redundant
1400 W -48 VDC, hot swap redundant
1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant

Cooling
Air cooling

Fans
Four hot plug fans

Ports

Front Ports
1 x USB 2.0 Type-A (optional LCP - Secondary KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini Displayport (optional LCP - Secondary KVM)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O configuration)

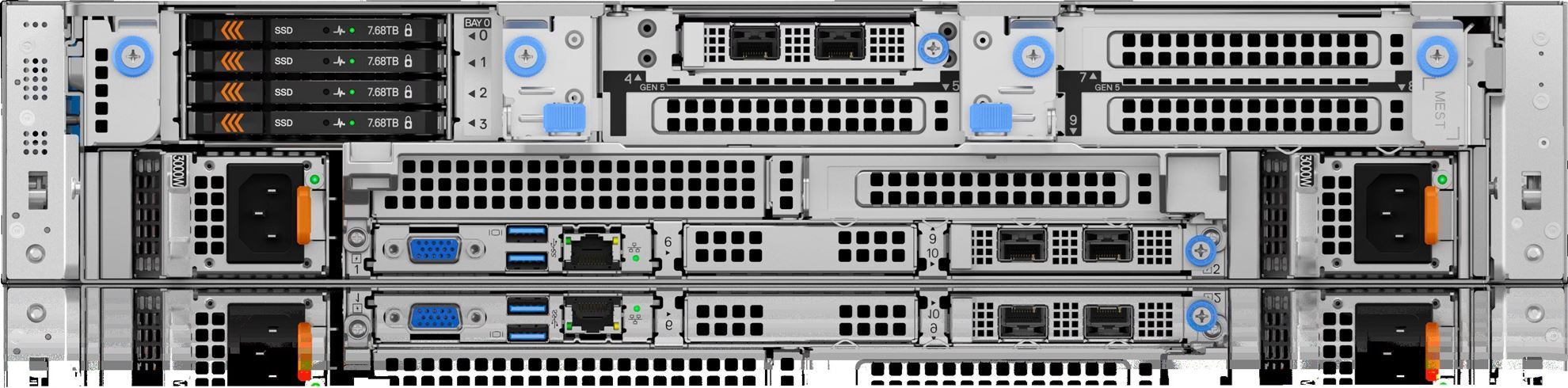

Rear Ports
1 x dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA

Internal Ports
1 x USB 3.1 Type-A

Slots

Network options
Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)

PCIe
Up to six PCIe slots (x16 connector)
Slot 2: 1 x16 Gen5 Full Height, Half Length
Slot 3: 1 x16 Gen5 Full Height, Half Length
Slot 4: 1 x16 OCP3.0
Slot 6: 1 x4 Gen4 Boss (optional)
Slot 7: 1 x16 Gen5 Full Height, Half Length
Slot 9: 1 x16 Gen5 Full Height, Half Length
Slot 10: 1 x16 OCP3.0
Slot 31: 1 x16 Gen5 Full Height, Half Length
Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional)
Slot 36: 1 x16 Gen5 Full Height, Half Length
Slot 38: 1 x16 OCP3.0

Gen5 PCIe slots
4

Embedded NIC
1 Gb dedicated BMC Ethernet port

Video
1 x VGA

1 x Mini-DisplayPort (optional)

Bezel

Security Bezel (optional)

Form Factor

2U rack server

Dimensions & Weight

Height
86.80 mm (3.42 in.)

Width
482 mm (18.98 in.)

Depth
802.4 mm (31.59 in.) with bezel
801.71 mm (31.55 in.) without bezel
Cold aisle/Front I/O Configuration—814.5 mm (32.06 in.) without bezel

Weight
31 kg (68.30 lb.)

Rack Support

ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.

Recommended Support

Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit www.delltechnologies.com/Services
