| Model Number |
Dell Pro Max Tower T2, FCT2250 |
| Processor Options |
Intel Core Ultra 5 235 – 14C/14T, 3.4–5.0 GHz, 65W Intel Core Ultra 5 245 – 14C/14T, 3.5–5.1 GHz, 65W Intel Core Ultra 5 245K – 14C/14T, 4.2–5.2 GHz, 125W Intel Core Ultra 7 265 – 20C/20T, 2.4–5.3 GHz, 65W Intel Core Ultra 7 265K – 20C/20T, 3.9–5.5 GHz, 125W Intel Core Ultra 9 285 – 24C/24T, 2.5–5.6 GHz, 65W Intel Core Ultra 9 285K – 24C/24T, 3.7–5.7 GHz, 125W |
| Operating System |
Windows 11 Home Windows 11 Pro Windows 11 Pro National Academic Windows 11 Enterprise Ubuntu Linux 24.04 LTS |
| Memory |
Up to 128GB DDR5 (ECC and Non-ECC)
Non-ECC: 8GB: 1x8GB 5600 MT/s 16GB: 2x8GB / 1x16GB 5600 MT/s 32GB: 1x32GB / 2x16GB / 4x8GB 5600/4800 MT/s 64GB: 2x32GB / 4x16GB 5600/4800 MT/s 128GB: 4x32GB 4400 MT/s
ECC: 16GB: 1x16GB 5600 MT/s 32GB: 2x16GB 5600 MT/s 64GB: 2x32GB / 4x16GB 5600/4800 MT/s 128GB: 4x32GB 4400 MT/s
|
| Primary Hard Disk Drives |
Solid-State Drives (NVMe): 256GB M.2 2230 PCIe Gen4, Class 35 512GB M.2 2280 PCIe Gen4 x4, Opal 2.0, Class 40 1 TB / 2 TB / 4 TB M.2 2280 PCIe Gen4 x4, Opal 2.0, Class 40 1 TB / 2 TB M.2 2280 PCIe Gen5 x4, Opal 2.0, FIPS Hard Drives (SATA): 1 TB, 7200 RPM 2 TB, 7200 RPM 4 TB, 5400 RPM 4 TB / 8 TB Enterprise HDD, 7200 RPM |
| Graphics Options |
NVIDIA: RTX A400 (4GB GDDR6) RTX A1000 (8GB GDDR6) RTX 2000 Ada (16GB GDDR6) RTX 4000 Ada (20GB GDDR6) RTX 4500 Ada (24GB GDDR6) RTX 5000 Ada (32GB GDDR6) RTX 6000 Ada (48GB GDDR6) RTX PRO 6000 Blackwell Workstation Edition (96GB GDDR7, 600W)AMD: Radeon Pro W7500 (8GB GDDR6) Radeon Pro W7600 (8GB GDDR6) |
| Case Color |
Dell Standard Black |
| Productivity Software |
Microsoft Office 30-day Trial Office Home and Business 2021 / Pro 2021 Dell Optimizer for Precision Dell Support Assist DDRE (Dell Developed Recovery Environment) Intel WiFi Direct Teradici CAS+ Cloud Host |
| Ports |

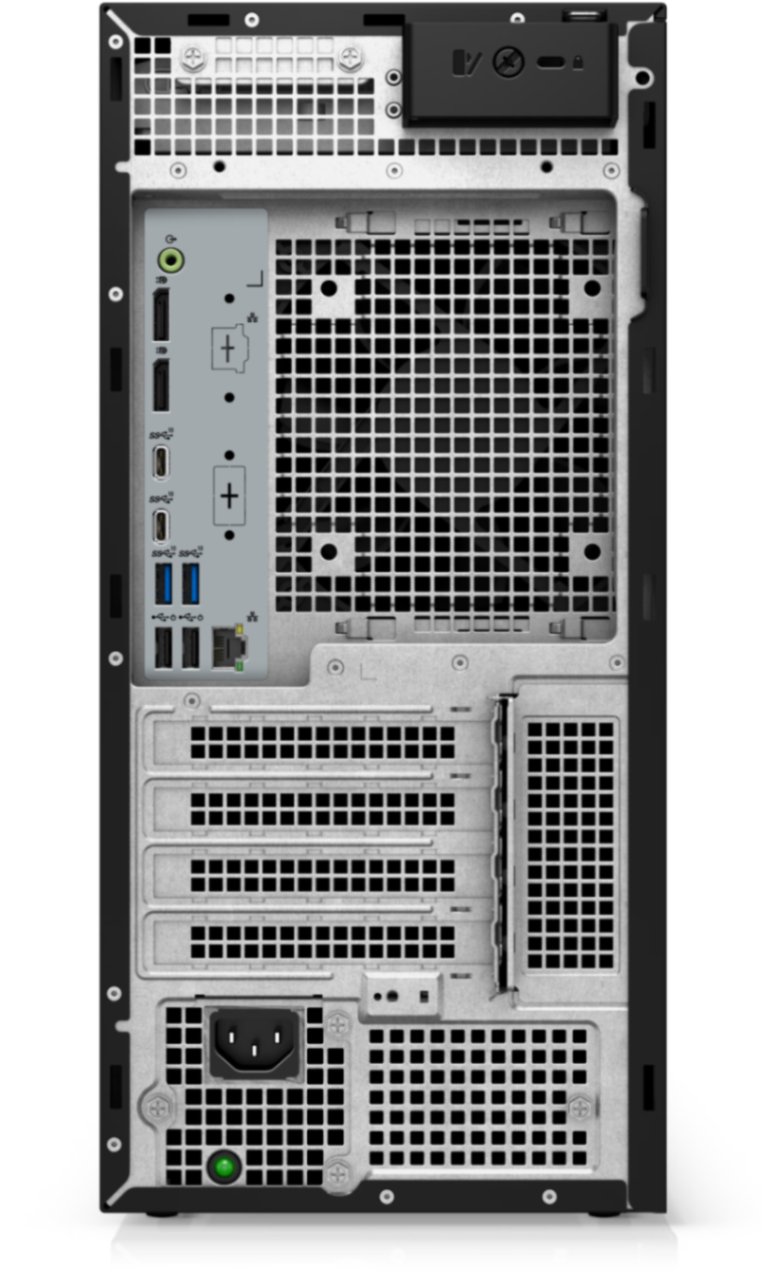

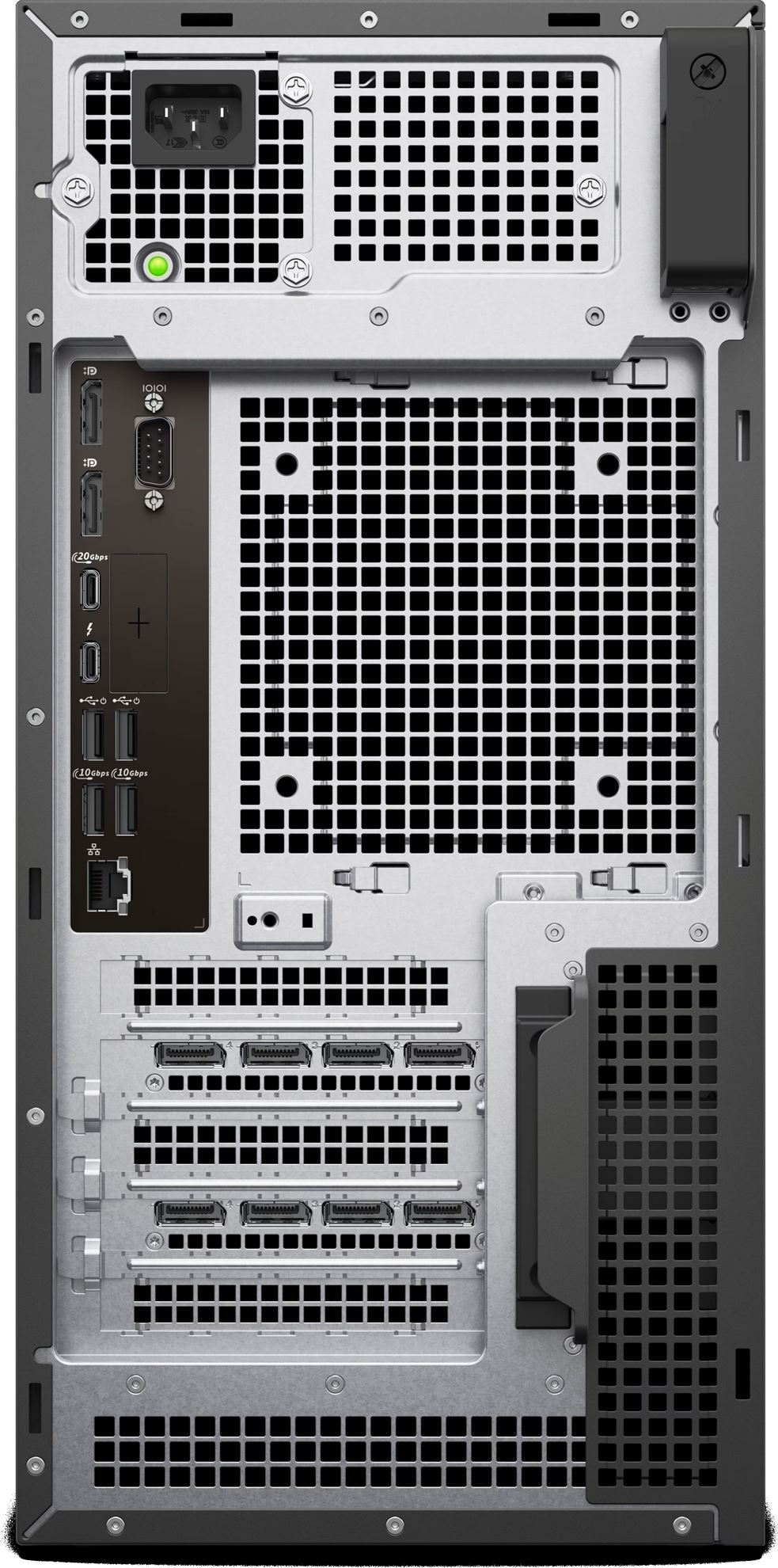

Front: 1x USB 3.2 Gen1 (5GBps) 1x USB 3.2 Gen1 (5GBps) with PowerShare 1x USB-C 3.2 Gen2 (10GBps) 1x USB-C 3.2 Gen2x2 (20GBps) with PowerShare 1x Headset jack 1x Optional SD 7.0 Express card slot 2x USB 2.0 (480 Mbps, SmartPower) 2x USB 3.2 Gen2 (10GBps) 1x USB-C 3.2 Gen2x2 (20GBps) 1x RJ45 (1GbE) 2x DisplayPort 1.4a HBR3 1x Optional Port (TBT4 + USB-C + DP Alt Mode + HDMI 2.1, DP 2.1, VGA, LC Fiber, 5GbE, 2x USB-A) 1x Thunderbolt Port |
| Optical Drive |
8x DVD-ROM or 8x DVD+/-RW 9.5mm Optional Smart Card Reader (CAC/PIV) |
| Expansion Slots |
3x SATA 3.5″ HDD 1x SATA ODD 2x M.2 2230/2280 PCIe Gen4 1x M.2 2230/2280 PCIe Gen5 1x Gen5 x16 (PEG GPU slot) 1x full-height, half-length Gen3 x4 (closed-end) 1x full-height, full-length Gen4 x4 (open-end) 1x full-height, full-length Gen3 x4 (open-end) |
| Dimensions |
Height: 387 mm (15.24″) Width: 187.7 mm (7.40″) Depth: 438 mm (17.24″) Weight: 8.17 kg (min) – 23 kg (max) |
| Audio & Speakers |
Stereo speakers with Waves MaxxAudio 14 – Realtek ALC3204 |
| Wireless |
Intel Wi-Fi 7 BE200, 2×2, Bluetooth 5.4 Qualcomm Wi-Fi 7 WCN7851, 2×2, Bluetooth 5.4 |
| Power Supply Options |
360W / 500W / 1500W (All 80PLUS Platinum Certified) |
| Chipset |
Intel W880 |
| Hardware Security |
Kensington lock slot Padlock loop Lockable cable cover (optional) Lockable front bezel (optional) Chassis intrusion switch Trusted Platform Module (TPM 2.0) |
| System Management |
Intel vPro (with wireless) Intel Standard Manageability (ISM) DASH (via AMT) Dell Command Suite: SCCM, Out of Band, PowerShell, BIOS, Asset Mgmt |
